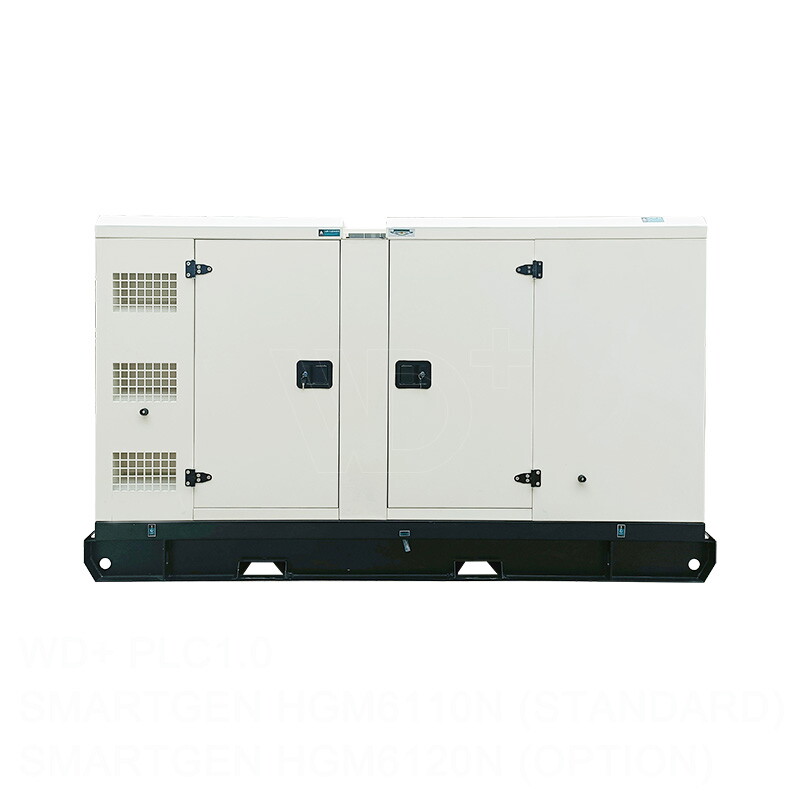

96kW 120kVA Diesel Generator, 3 Phase, 6 Cylinder, DCEC Engine
Key Specifications / Features
Model No.: GGS-240320-DGS-09
Hits: 11
Introducing our 96kW (120kVA) Diesel Generator, crafted for reliable power generation at 50Hz. Featuring a robust 4-stroke, 6-cylinder DCEC engine, this generator ensures efficient performance. Equipped with a brushless, self-excited alternator and a water cooling system, it guarantees stable operation. Trust in our generator for dependable three-phase power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 96kW 120kVA Diesel Generator
Model: GGS-120-DC
Frequency: 50Hz
Prime Power: 96kW, 120kVA
Rated Current: 190.5A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: DCEC 6BTA5.9-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-120-DC |
| Frequency | 50Hz |
| Prime Power | 96kW / 120kVA |
| Standby Power | 105.6kW / 132kVA |
| Rated Current | 190.5A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 3200 x 1100 x 1680 |
| Net Weight (KG) | 1600 |
| Engine Specification | |
| Engine Brand | DCEC |
| Engine Model | 6BTA5.9-G2 |
| Prime Power | 106kW/142hp |
| Standby Power | 116kW/155hp |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbo & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
