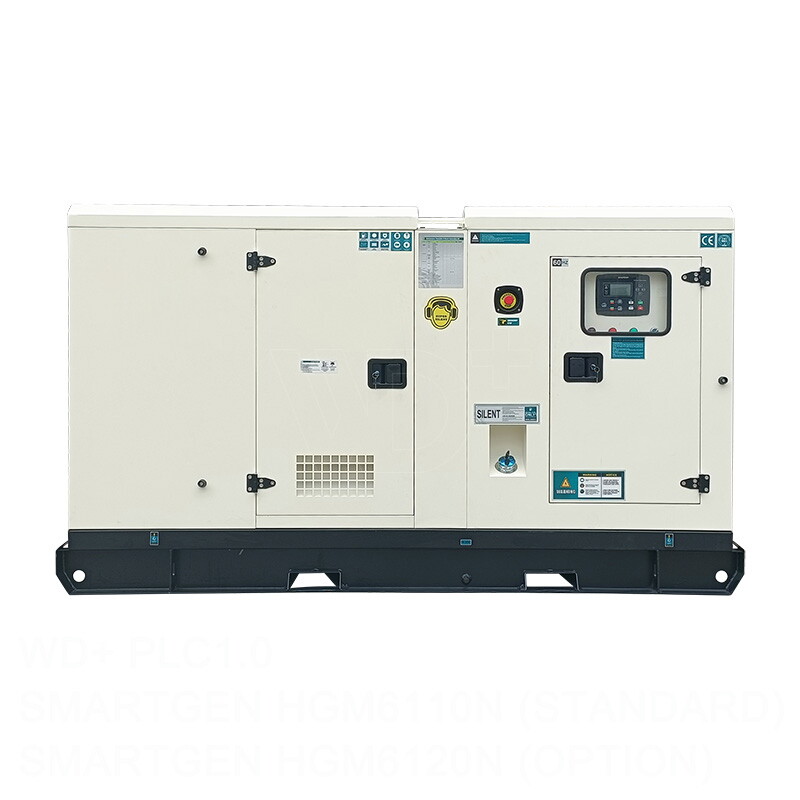

25kW Diesel Generator, 50Hz, DCEC Engine, Brushless Alternator
Key Specifications / Features
Model no.: GGS-240320-DGS-10
Hits: 0
Introducing our 3 Phase Diesel Generator, powered by a reliable 4-stroke, 4-cylinder DCEC engine. Equipped with a brushless alternator, this generator offers a prime power output of 25kW (30.3kVA). Trust in our generator for dependable three-phase power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 25kW Diesel Generator
Model: GGS-30.3-DC
Frequency: 50Hz
Prime Power: 25kW, 30.3kVA
Rated Current: 49.6A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: DCEC 4BT3.9-G1
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-30.3-DC |
| Frequency | 50Hz |
| Prime Power | 25kW / 30.3kVA |
| Standby Power | 27.5kW / 34.4kVA |
| Rated Current | 49.6A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 3250 x 960 x 1400 |
| Net Weight (KG) | 930 |
| Engine Specification | |
| Engine Brand | DCEC |
| Engine Model | 4BT3.9-G1 |
| Prime Power | 36kW/48hp |
| Standby Power | 40kW/54hp |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 18.0:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Mechanical |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
