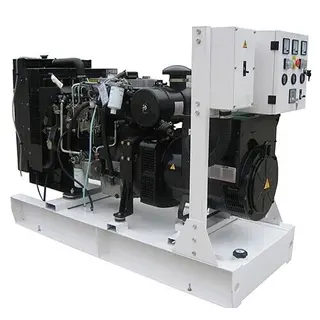

198kW Diesel Generator, Perkins 1056A-E88TAG1, Water Cooled
Key Specifications / Features
Model No.: GGS-240329-DGS-04
Hits: 5
Achieve dependable power supply with our 60Hz diesel generator, offering a robust prime power output of 198kW and 248kVA. Equipped with a Perkins 1056A-E88TAG1 engine, a Stamford UCDI274J alternator, and featuring water cooling and electronic governor systems, ensuring reliable performance for your operational needs.
Request a quote
Tags
Detail Information
Product Name: 198kW Diesel Generator
Model: GGS-248-P
Frequency: 60Hz
Prime Power: 198kW, 248kVA
Standby Power: 218kW, 272kVA
Rated Voltage: 127V, 220V
Displacement: 8.8 L
Bore x Stroke: 112 x 149 mm
Compression Ratio: 16.1:1
Engine: Perkins 1056A-E88TAG1, 4 Stroke, 6 Cylinder Vertical in Line
Alternator: Stamford UCDI274J, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-248-P |
| Frequency | 60Hz |
| Prime Power | 198kW/248kVA |
| Standby Power | 218kW/272kVA |
| Rated Voltage | 220V, 127V |
| Dimension (L x W x H) (mm) | 2500 x 900 x 1750 |
| Gross Weight (KG) | 1800 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1056A-E88TAG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged, Aftercooled |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 8.8 L |
| Bore x Stroke | 112 x 149 mm |
| Compression Ratio | 16.1:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
