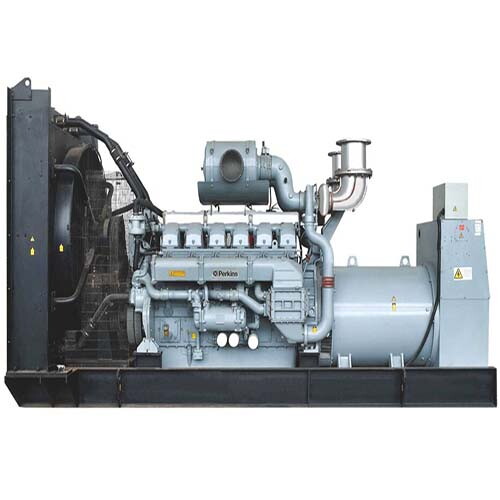

1360kW Diesel Generator, Perkins 4012-46TAG3A, Water Cooled
Key Specifications / Features
Model No.: GGS-240325-DGS-03
Hits: 6
Introducing our water-cooled diesel generator, delivering prime power of 1360 kW and 1700 kVA. This generator is driven by the Perkins 4012-46TAG3A engine, featuring a 4-stroke, 12-cylinder V-form configuration. Trust in our generator for reliable and efficient power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 1360kW Diesel Generator
Model: GGS-1700-P
Prime Power: 1360kW, 1700kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Perkins 4012-46TAG3A
Engine Type: 4 Stroke, 12 Cylinder, Vee form
Alternator Model: Stamford PI734D
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1700-P |
| Frequency | 50Hz |
| Prime Power | 1360kW/1700kVA |
| Standby Power | 1500kW/1875kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 7000 × 2300 × 2800 |
| Gross Weight (KG) | 7200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4012-46TAG3A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Air to Water Charge Cooled |
| Number of Cylinders | 12 Cylinder, Vee form |
| Combustion System | Direct Injection |
| Cycle | 4 Stroke |
| Displacement | 45.84 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734D |
| Excitation system | Single Bearing, Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
