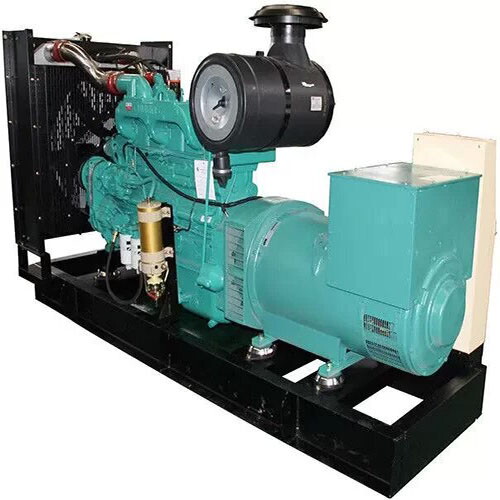

344kVA Diesel Generator, 60Hz, 3 Phase, Cummins NTA855-G1B
Key Specifications / Features
Model No.: GGS-240402-DGS-05
Hits: 16
Delivering dependable power, this 60Hz diesel generator is equipped with a Cummins NTA855-G1B engine boasting a 4-stroke, 6-cylinder in-line configuration, and features a sophisticated electronic governor, providing a robust prime power output of 275kW and 344kVA for various industrial and commercial applications.
Request a quote
Tags
Detail Information
Product Name: 344kVA Diesel Generator
Model: GGS-344-C
Frequency: 60Hz
Prime Power: 275kW, 344kVA
Standby Power: 300kW, 375kVA
Rated Voltage: 127V, 220V
Displacement: 14 L
Bore x Stroke: 140 x 152 mm
Compression Ratio: 14:1
Engine: Cummins NTA855-G1B, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford S4L1D-D41, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-344-C |
| Frequency | 60Hz |
| Prime Power | 275kW/344kVA |
| Standby Power | 300kW/375kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 3066 x 1244 x 1897 |
| Weight | 3310 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | NTA855-G1B |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 14 L |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 14:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | S4L1D-D41 |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
