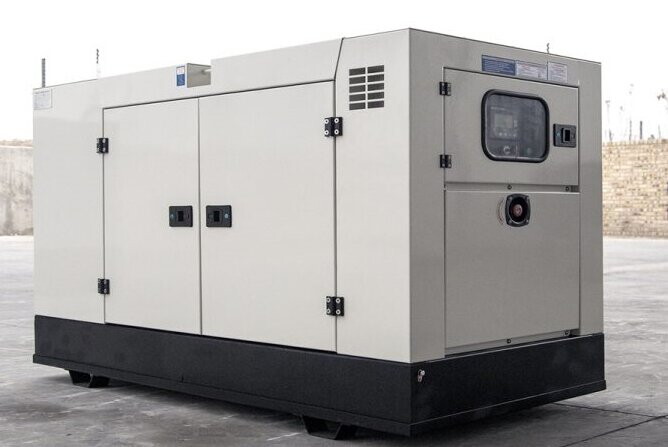

40kW 50kVA Diesel Generator, 50Hz, YTO, Brushless Alternator
Key Specifications / Features
Model no.: GGS-240312-DGS-05
hits: 0
Introducing the 40kW Diesel Generator, engineered for prime power applications. With a robust YTO engine, it delivers a prime power of 40kW (50kVA) at 50Hz. Featuring water cooling and a brushless alternator, it ensures reliable performance. Rated at both 230V and 400V, it offers versatility for various electrical needs. Trust in this generator for dependable power generation in diverse settings.
Request a quote
Tags
Detail Information
Product Name: 40kW 50kVA Diesel Generator
Model: GGS-50-Y
Engine Brand: YTO
Frequency: 50Hz
Prime Power: 40kW, 50kVA
Rated Voltage: 230/400V
Cooling Method: Water Cooled
Engine Type: 4 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase & 4 Wire
Dimension (L x W x H): 2400 x 950 x 1350 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-50-Y |
| Frequency | 50Hz |
| Prime Power | 40kW/50kVA |
| Standby Power | 44kW/55kVA |
| Rated Voltage | 400V, 230V |
| Rated Current | 79A |
| Dimension (L x W x H) (mm) | 2400 x 950 x 1350 |
| Net Weight (KG) | 1150 |
| Engine Specification | |
| Engine Brand | YTO |
| Model | LR4B5-D |
| Cooling System | Water Cooled |
| Aspiration | Natural Aspiration |
| Fuel System | Direct Inject |
| Number of Cylinders | 4 Cylinder In Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 4.95 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1500rpm |
| Rated Power (With Fan) | 48kW |
| Governor Type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford UCI224D |
| Exciter Type | Brushless, Self-Excitation |
| Phase | 3 |
| Wiring Type | 3 Phase 4 Wire, Y Type |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
