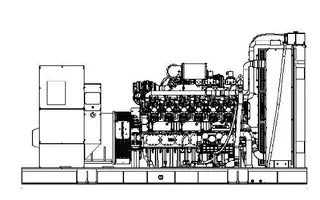

How to Maintain AVR Stability of Brushless Generator
On this page

The automatic voltage regulator (AVR) is a key component in the brushless generator, which ensures stable voltage and frequency output under various load conditions through the precise coordination of the rectifier main circuit, the voltage detection circuit and the comparison control circuit. Understanding how AVRs work and the potential causes of damage is essential to effectively prevent and resolve AVR failures. Below, we will have a deep analysis of AVR failures and corresponding methods for resolving and preventing these issues, to ensure the stable operation and excellent performance of brushless generators.


The Composition and Working Principle of AVR Circuit


The AVR in a brushless generator is essential for maintaining stable voltage and frequency output and consists of three main parts:

Rectifier main circuit: converts the alternating current generated by the generator into direct current.
Voltage detection circuit: Monitors the generator output voltage level.
Comparison control circuit: Adjust the excitation current according to the detected voltage signal, so that the output voltage remains stable within the set range.

These components work together to enable the generator to maintain consistent power output under various load conditions.


Methods for Determining AVR Damage


To accurately assess AVR damage, the following experimental methods can be used.

Check AVR cover and plug: Open AVR cover and disconnect F1 and F2 plugs.
Connect the power cable: Use the power cable to connect the positive and negative terminals of the 12V startup battery to the F1 and F2 plugs of the AVR, respectively, to ensure that the connection is correct.
Start the generator and observe: Start the diesel generator to 1500rpm and observe the voltage and frequency changes. If the voltage increases as the speed changes while the frequency remains stable, it may indicate that the AVR is damaged and needs to be replaced.


AVR Damage Cause Analysis


AVR(Automatic Voltage Regulator) damage in a brushless generator can result from several key factors that affect its ability to maintain a stable voltage and frequency output. Understanding these causes is essential for prevention and effective troubleshooting.


1. Voltage Fluctuation and Overload

When the generator is operating under high load or unstable grid voltage conditions, it may cause excessive voltage surges or prolonged voltage fluctuations in the internal circuit of the AVR, resulting in damage to its electrical components, especially the rectifier bridge and transistors.


2. Uneven Load and Overload

Generators run for a long time under unbalanced load or overload conditions, requiring the AVR to adjust the output voltage and frequency frequently. This increases the workload of the internal circuit and accelerates the aging and potential damage of the components.


3. Aging of Electrical Components

Over time, components such as capacitors and transistors inside AVRs gradually age, reducing their stability and durability. This can eventually lead to overall performance degradation or failure.


4. Environmental Factors

Factors such as humidity, dust, and high temperature in the generator operating environment can also affect the normal operation of the AVR, which may cause damage or performance degradation of the AVR.


Preventive Measures and Solutions


To mitigate AVR(Automatic Voltage Regulator) damage and ensure reliable operation of brushless generators, several preventive measures and solutions can be implemented.

Regular inspection and maintenance: Regularly check the AVR and the surrounding circuit connection, clean and tighten the connecting parts to ensure stable and reliable operation.
Maintain load stability and balance: Plan and distribute loads properly to avoid sudden load fluctuations and overloads, thereby reducing AVR pressure.
Ensure generator voltage stability: Periodically calibrate and adjust the generator voltage regulator so that the output voltage is stable within the specified range.
Optimize diesel engine operating parameters: Ensure that the diesel engine operates within a stable speed range to minimize the impact of current fluctuations on the AVR.
Select the right generator set: Consider generators with advanced fuel systems that provide a more stable output frequency and voltage, reducing the operating pressure of the AVR.

By maintaining the stability and reliability of the AVR and its surrounding circuits through regular maintenance and proper operation of the generator, the damage rate can be significantly reduced. In the case of suspected AVR damage, detailed testing and experimental methods can accurately identify the fault and repair it in time, ensuring long-term stable operation of the power generation system. In summary, effective preventive measures and proper maintenance practices greatly improve the performance and life of the brushless generator AVR, thus ensuring a continuous and stable power supply.
