How Diesel Generators Synchronize with the Power Grid
On this page

Diesel generator synchronization with the power grid refers to the process of connecting an independently operating diesel generator set to a public utility grid or an internal electrical network. During this process, the electrical parameters of the generator must match those of the grid so that both systems can operate in parallel, allowing load sharing or seamless transfer between power sources.

In simple terms, synchronization is similar to two moving vehicles driving side by side. If their speeds or directions differ, forcing them together will result in a collision. The same principle applies to generator synchronization, only when voltage, frequency, and phase are properly aligned can the generator be safely connected to the grid.

This operation is widely used in facilities such as hospitals, factories, and data centers where continuous power supply is critical. In these environments, if the utility grid fails, the diesel generator must immediately take over the load. When grid power is restored, the load must be smoothly transferred back to the grid. The entire process requires precise synchronization control.

Five Essential Technical Conditions for Safe Synchronization

For safe grid synchronization, five technical conditions must be met simultaneously. If any one of these conditions is not satisfied, synchronization cannot be safely performed.

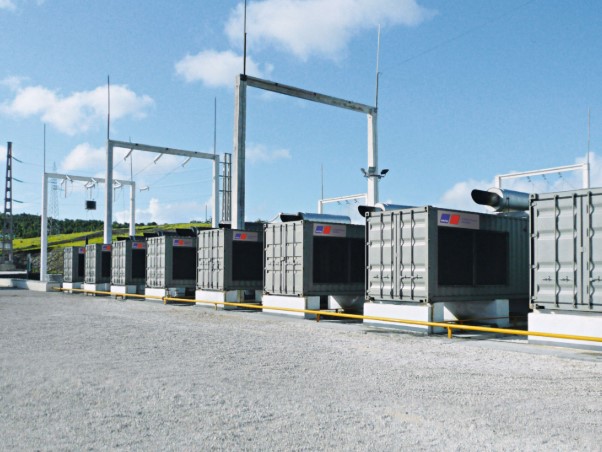

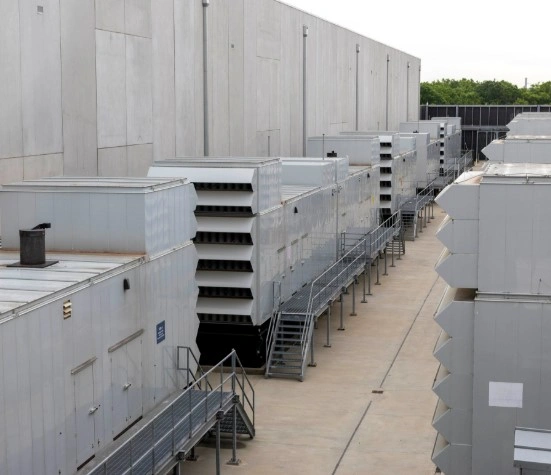

Diesel Generators Connection to Power Grid

1. Voltage Equality

The generator output voltage must match the grid voltage. The voltage referenced here is the RMS (root mean square) value.

In practical operations, the voltage difference is typically controlled within 1%. If the generator voltage is too high, reactive power may flow back into the grid. If the voltage is too low, the generator will not be able to carry its intended share of the load.

2. Frequency Equality

The generator frequency must match the grid frequency.

In many power systems, the standard grid frequency is 50 Hz. During synchronization, the frequency difference is generally required to be within 0.1 Hz. Frequency mismatch can lead to power oscillations between the generator and the grid, potentially damaging equipment.

3. Identical Phase Sequence

The three-phase sequence of the generator (Phase A, Phase B, Phase C) must be identical to that of the grid.

An incorrect phase sequence is a serious operational fault that may cause short circuits, equipment damage, or even explosions. During the initial grid connection or after maintenance work, the phase sequence must always be verified using a phase sequence meter.

4. Phase Angle Alignment

The voltage phase angle difference between the generator and the grid should ideally be zero or very close to zero.

The phase angle difference represents the time shift between the generator voltage waveform and the grid waveform. In an ideal situation, both waveforms overlap perfectly. In practice, the circuit breaker is usually closed when the phase angle difference is less than 10 degrees.

5. Waveform Compatibility

The generator output waveform should be a standard sinusoidal wave with acceptable distortion levels.

Modern diesel generator sets typically meet this requirement automatically. However, aging equipment or malfunctioning generators may produce waveform distortion that affects synchronization quality.

Core Components of a Synchronization System

Safe synchronization requires specialized control systems and protective equipment. The key components include the following.

1. Automatic Synchronizer

The automatic synchronizer is the central control unit of the synchronization system. It continuously monitors the voltage, frequency, and phase angle of both the grid and the generator.

The synchronizer automatically adjusts generator speed and excitation current so that the parameters converge. Once synchronization conditions are satisfied, the synchronizer issues a breaker closing command at the optimal moment.

Modern automatic synchronizers use digital technology, offering high accuracy and fast response. Parameter adjustments and synchronization decisions can be completed within milliseconds, significantly reducing human operating errors.

2. Paralleling Controller

The paralleling controller manages power distribution when multiple generators operate in parallel or when generators operate in parallel with the grid.

Based on a predefined load-sharing strategy, the controller automatically regulates the active power and reactive power output of each generator, ensuring stable system operation.

3. Power Management System (PMS)

A Power Management System is a higher-level control platform used to monitor the entire power supply system.

Typical PMS functions include:

  • Automatic generator start and stop
  • Load priority management
  • Fault switching and backup control
  • Energy consumption monitoring and analysis

In large facilities, the PMS plays a crucial role in maintaining power supply reliability.

4. Protective Relays

Protective relays serve as the safety barrier of the synchronization system. They monitor abnormal operating conditions and trigger protective actions.

Major protection functions include:

  • Reverse Power Protection – Prevents the generator from operating as a motor driven by the grid
  • Overcurrent Protection – Prevents damage caused by short circuits or overloads
  • Overvoltage/Undervoltage Protection – Protects equipment from voltage abnormalities
  • Frequency Protection – Detects frequency deviations from acceptable limits
  • Differential Protection – Detects internal faults and isolates faulty equipment rapidly

5. Synchronizing Meter and Indicator Lamps

The synchronizing meter is a traditional synchronization instrument used to display the phase angle difference between the generator and the grid.

Operators observe the rotation of the pointer to determine the frequency difference. When the pointer approaches the zero position, the breaker can be manually closed.

Although modern systems typically rely on automatic synchronization, synchronizing meters are still retained as backup indicators and auxiliary monitoring tools.

Standard Synchronization Procedure

A standardized synchronization procedure generally includes the following stages.

1. Pre-Start Inspection

Before starting the generator, a comprehensive inspection must be conducted.

Mechanical checks include:

  • Confirm sufficient fuel supply
  • Verify engine oil level
  • Ensure adequate coolant
  • Check belt tension
  • Ensure no oil or coolant leakage

Electrical checks include:

  • Secure cable connections
  • Proper insulation condition
  • Reliable grounding
  • Normal control circuit operation

System checks include:

  • Stable grid voltage
  • No abnormal alarms
  • Synchronization system ready for operation

2. Generator Startup and No-Load Operation

After starting the generator, it should run under no-load conditions for 3–5 minutes.

During this period, operators monitor key parameters:

  • Engine oil pressure within normal range
  • Gradual rise in coolant temperature
  • Stable voltage and frequency
  • No abnormal noise or vibration

3. Parameter Adjustment and Synchronization

Once the generator is stable, the automatic synchronization process begins. The system performs the following steps:

  1. Monitor grid and generator voltage and frequency
  2. Adjust generator speed so that frequency approaches the grid frequency
  3. Adjust generator excitation to match grid voltage
  4. Monitor phase angle difference and wait for optimal closing timing
  5. Issue breaker closing command when the phase difference approaches zero

4. Load Transfer

After the circuit breaker closes, the generator operates in parallel with the grid. The next step is load transfer.

Two common scenarios include:

  • Grid to Generator Transfer: The generator load is gradually increased while the grid supply is reduced until the generator carries the entire load.
  • Generator to Grid Transfer: The generator load is gradually decreased while grid supply increases until the grid resumes full load supply. Load transfer must be performed gradually and smoothly to prevent sudden load changes that could destabilize the system.

5. De-Synchronization and Shutdown

Once the load transfer is complete, the generator circuit breaker is opened to disconnect it from the grid.

The generator should then run without load for a short period to cool down before performing a normal shutdown.

Operating Modes While Connected to the Grid

In addition to full switching standby operation, diesel generators can also run while remaining connected to the grid.

1. Standby Power Mode

In this mode, the generator remains in hot standby and continuously monitors grid conditions.

If a grid failure occurs (voltage drop, frequency anomaly, or power outage), the generator automatically starts and takes over the load. When grid power is restored, the load is automatically transferred back and the generator shuts down.

This mode requires an Automatic Transfer Switch (ATS) to ensure that power is not fed back into the grid during switching, protecting utility maintenance personnel.

2. Load Sharing Mode

In load sharing mode, the generator and grid operate simultaneously to supply power.

Typical applications include:

  • Peak shaving – running generators during peak demand to reduce electricity costs
  • Capacity support – supplementing grid supply when utility capacity is insufficient
  • Power quality improvement – stabilizing supply in regions with unstable grids

This mode requires synchronization panels and power management systems to ensure accurate load distribution.

3. Hybrid Energy Mode

In systems that incorporate renewable energy sources such as solar or wind power, diesel generators act as a stabilizing power source.

When renewable output is insufficient, the generator automatically supplements the power supply. In such systems, inverters coordinate the output of different power sources to maintain system stability.

Safety Precautions and Risk Prevention

Synchronizing diesel generators with the grid involves high voltage and large currents. Strict adherence to safety procedures is essential.

1. Preventing Backfeeding

Backfeeding occurs when a generator sends power into a de-energized utility grid. This poses a fatal hazard to utility maintenance personnel.

Preventive measures include:

  • Installing ATS units with mechanical and electrical interlocks
  • Deploying anti-islanding protection devices
  • Periodically testing protection system functionality

2. Preventing Overload

Continuous overload operation may cause overheating, insulation degradation, or generator failure.

Preventive measures include:

  • Accurate load calculation and proper generator sizing
  • Installing overload protection devices
  • Regular monitoring of temperature, current, and operating conditions

3. Ensuring Correct Synchronization

Out-of-synchronization connection can cause severe damage.

Preventive measures include:

  • Using automatic synchronizing devices
  • Verifying phase sequence before synchronization
  • Regularly checking synchronization system accuracy

4. Equipment Maintenance

Routine maintenance is essential for safe and reliable operation.

Maintenance tasks include:

  • Daily inspections of fluid levels, battery status, and external conditions
  • Periodic replacement of oil and filters based on operating hours
  • Annual inspection of electrical and control systems
  • Regular load testing to verify actual load capacity

Consequences of Out-of-Synchronization Connection

Ignoring synchronization conditions and forcing a generator to connect to the grid can cause serious consequences.

1. Mechanical Damage

Out-of-synchronization connection creates massive inrush currents and mechanical stress on the generator shaft system, which may result in:

  • Bent or broken generator shafts
  • Damaged couplings
  • Bearing failures
  • Loosened foundations

2. Electrical Equipment Damage

Electrical shock currents and electromagnetic forces can damage electrical equipment:

  • Welded or damaged breaker contacts
  • Transformer winding deformation or insulation breakdown
  • Overheated cables or insulation failure
  • Switchgear explosions

3. System Failures

Out-of-sync connection can trigger system-wide disturbances:

  • Protective relay trips causing large-scale power outages
  • Grid voltage collapse affecting other users
  • Generator loss of synchronism

4. Personal Safety Hazards

The most severe consequence is injury or death:

  • Arc flash explosions causing severe burns
  • Equipment explosions causing impact injuries
  • Electric shock accidents

Conclusion

Synchronizing a diesel generator with the power grid is a highly technical process that involves electrical engineering, mechanical systems, and advanced control technologies.

Proper synchronization ensures uninterrupted power supply, protects expensive equipment, and improves energy efficiency. Improper operations, however, may result in equipment damage, system failures, or serious safety incidents.

With ongoing technological advancements, modern synchronization systems have become increasingly intelligent and automated, significantly reducing operational complexity and risk. Nevertheless, a solid understanding of the underlying principles, strict adherence to safety regulations, and regular equipment maintenance remain essential for ensuring reliable system operation.

For organizations that rely on backup power or grid support, it is advisable to consult professional power engineers or equipment suppliers when designing synchronization solutions tailored to specific operational requirements, ensuring safe, efficient, and dependable performance.
