In the world of diesel generator sets, the cooling system functions much like the body's temperature-control air conditioner, playing a vital role in keeping everything running smoothly. Among various cooling methods, water-cooled systems have become the preferred choice for most diesel generators due to their numerous advantages. Today, we'll take an in-depth look at two major types of water-cooled systems, natural circulation cooling and forced circulation cooling, to understand their respective strengths, limitations, and how to select the most suitable cooling method.
Natural circulation cooling, as the name implies, relies on the changes in cooling-water density with temperature to achieve circulation. When the diesel generator is in operation, water in heated areas rises as its temperature increases and its density decreases; meanwhile, relatively cooler and denser water sinks. This creates a loop through which water circulates naturally, carrying heat away. This cooling method features a very simple structure and usually does not require complicated mechanical components. Much like natural water flow, it appears plain and uncomplicated, yet functions effectively in its own way.
Easy Maintenance: Due to its simple structure and minimal number of complex components, natural circulation cooling systems are relatively easy to maintain. For users of small diesel generators, this means lower maintenance costs and reduced maintenance time. There is no need for frequent involvement of professional technicians—basic inspections and upkeep can be handled independently.
Lower Cost: During initial installation, natural circulation systems require fewer components and materials, making the overall cost more economical. For small enterprises or individual users with limited budgets, this system helps ease financial pressure to some extent.
Lower Cooling Efficiency: Because water circulates slowly in a natural convection process, its cooling efficiency is relatively low. For large or high-power diesel generators, this method often fails to meet rapid heat dissipation needs. If heat cannot be discharged efficiently, the engine becomes like a person wearing thick cotton clothing in summer, unable to release heat effectively, resulting in overheating and compromised performance and lifespan.
Uneven Cooling: Since natural circulation relies solely on convection, the distribution of coolant inside the engine is uneven. Typically, water at the bottom of the engine is cooler, while water at the top is much hotter. This can easily lead to localized overheating—similar to a pot of water where the bottom boils while the top remains warm. Such uneven cooling is harmful to engine stability and may cause failures and safety risks.

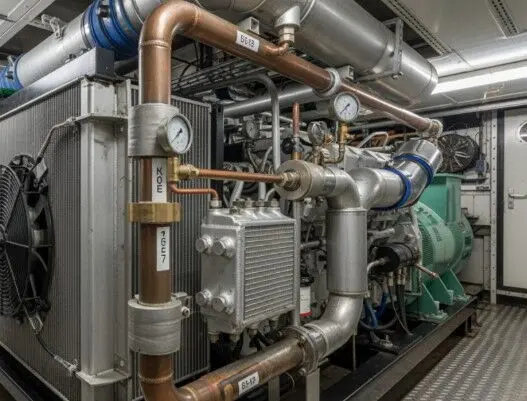

Forced circulation cooling uses the power of a water pump to drive coolant through the diesel generator. Pressurized by the pump, water flows rapidly across heated components, absorbs heat, and is then sent to the radiator for cooling, repeating the cycle continuously. This creates a highly efficient cooling loop. Depending on design and requirements, forced circulation systems can be classified into open systems and closed systems.
Features: In an open forced circulation system, the coolant is directly exposed to the atmosphere, and the internal steam pressure always matches outside air pressure. This means the coolant is constantly in contact with air and tends to evaporate during circulation, resulting in relatively high water consumption.
Application Scenarios: This simple-structured cooling system is suitable for conditions where water consumption is not a major concern and water sources are readily available. Typical applications include small, temporary generator setups or certain industrial environments where it serves as an auxiliary cooling method.
Features: A closed forced circulation system is equipped with an air-steam valve on the radiator cap, preventing direct contact between coolant and ambient air. Water circulates within a sealed environment. Since internal steam pressure is slightly higher than atmospheric pressure, the boiling point of water increases beyond 100°C. This acts like providing coolant with a “protective shield,” enabling it to operate stably at higher temperatures while reducing evaporation.
Advantages:
Stable Operating Temperature: The system effectively increases the inlet and outlet water temperatures of the generator, maintaining a small temperature difference. This creates a stable “micro-environment” for the engine, improving operational efficiency and fuel economy.
Reduced Radiator Size: With an elevated boiling point and higher average radiator temperature, heat dissipation efficiency improves, allowing for a more compact radiator design. This reduces space requirements and lowers equipment cost.
Reduced Water Consumption: Since the coolant circulates in a closed loop, evaporation and loss are minimized—ideal for areas with limited water resources or applications that demand efficient water use.
Shortened Engine Oil Preheating Time: The system's efficient heat transfer enables faster stabilization of engine temperature. Oil reaches optimal operating temperature sooner, reducing preheating time and improving starting performance.
Disadvantages: The main drawback of closed forced circulation systems lies in the higher pressure within the cooling loop. Components such as pumps, radiators, and tanks must withstand greater pressure, requiring higher-quality materials and structural strength. This increases manufacturing costs and maintenance difficulty, while also imposing stricter reliability requirements.
After understanding both cooling principles and their respective pros and cons, the next question is which system to choose for different scenarios. The correct selection depends largely on application needs and working conditions.
For small diesel generators, natural circulation cooling is usually a good choice. Its simple structure, ease of maintenance, and low cost make it suitable for low-demand, low-frequency applications. Examples include small construction sites, rural irrigation systems, or small commercial operations. Natural circulation systems can meet basic power needs while remaining easy to maintain.
For large or high-power generators, forced circulation is essential—especially closed forced circulation systems. Their efficient and stable cooling performance supports long-duration, heavy-load operation. In industrial facilities, data centers, hospitals, airports, and other environments requiring highly reliable power supply, closed forced circulation cooling prevents overheating and ensures stable operation of critical equipment.
Certain unique environments require special considerations:
Marine generators:
Due to space constraints and exposure to seawater, closed forced circulation systems are commonly used, often with anti-corrosion treatments.
Mobile power units:
Mobility and adaptability are key.
Open systems may be used in outdoor operations where water is readily available.
Closed systems are preferred in locations with strict noise or environmental requirements to minimize evaporation and noise.
Regardless of whether natural or forced circulation is used, regular maintenance is essential for ensuring proper operation.
Coolant Level: Before each startup, check the coolant level. If it's low, replenish with clean soft water or specialized coolant promptly.
External Component Check: Inspect for leaks, deformation, or damage in components such as pumps, radiators, and tanks. Address issues immediately to prevent escalation.
Fan and Belts (for forced systems): Check fan blades and belt tension. Faults in these parts reduce coolant flow speed and lower cooling efficiency.
Coolant Replacement: Based on usage frequency and conditions, replace coolant approximately every 500 hours. Old coolant may be contaminated or form scale that affects system performance.
Radiator Cleaning: Remove dust, oil, and debris from the radiator to maintain heat dissipation efficiency. Use appropriate cleaning agents as recommended.
Thermostat Inspection: The thermostat regulates coolant flow. Malfunctions may cause abnormal engine temperatures. Temperature differences in radiator inlet and outlet pipes can help diagnose such issues.
Use Proper Coolant: Avoid hard water to prevent scale buildup and corrosion.
Prevent Overheating: Monitor water temperature during operation (typically 80–90°C). If overheating occurs, reduce load or increase circulation speed.
Seek Professional Repairs: For major faults such as pump failure or internal radiator blockage, rely on qualified technicians to avoid further damage.
The cooling system of a diesel generator is essential for ensuring stable operation. Natural and forced circulation cooling systems each have their own characteristics and applicable scenarios. Natural circulation cooling is favored in small generator sets for its simplicity and low cost, while forced circulation cooling, especially closed-loop systems, dominates in large and high-power applications for its efficiency and stability.
Selecting the right cooling method requires considering generator capacity, environment, and operating frequency. Equally important is proper maintenance to maintain reliable performance and extend generator lifespan.
In short, whether natural or forced circulation, both systems act as indispensable cooling guardians of diesel generators. Understanding their working principles, advantages, limitations, and maintenance essentials empowers us to use them more effectively and ensure stable power supply for modern life and industry.
