In modern society, the stability of power supply is crucial for the normal operation of various facilities. Diesel generator sets, as a reliable backup power source, play a vital role in many situations. However, to ensure the efficient and safe operation of the generator set, every detail in the installation process must not be overlooked, especially the installation of the base. This article will provide a detailed introduction to the key points of installing the base of a diesel generator set, helping readers gain a comprehensive understanding of this process.
Before starting the installation of a diesel generator set, we need to consider many factors to ensure the rationality and safety of the installation location.
A diesel generator set can be installed in a basement, on the ground, or on a roof. However, no matter which location is chosen, certain conditions must be met. First, the site must have sufficient space to ensure air circulation. Good ventilation is essential for the heat dissipation of the generator set; otherwise, it may lead to equipment overheating, affecting its performance and lifespan. Second, there should be enough space around the generator and alternator to facilitate maintenance and repair work. Additionally, the access routes and positions for maintenance must be considered to ensure that operators can easily reach all parts of the equipment.
The load-bearing capacity of the floor is an important factor to consider. The net weight of the entire generator set (including fuel and water) and the number of vibration isolators will affect the floor's load-bearing pressure. If the base is directly installed on the floor, it is necessary to accurately calculate the floor's load-bearing capacity to ensure it can support the weight of the generator set. If the generator set is equipped with vibration isolators and the weight is evenly distributed on each isolator, the floor's load-bearing capacity can be calculated simply. However, if the weight distribution is uneven, a greater floor pressure may be concentrated on the supporting isolators. Therefore, before installation, the floor's load-bearing capacity must be assessed to avoid safety hazards caused by overloading.
In addition to site and load-bearing capacity, environmental factors must also be considered. For example, noise reduction measures in the machine room are essential because diesel generator sets produce significant noise during operation. Moreover, the connection and insulation of the exhaust pipe are also key issues that need attention. The exhaust pipe must be correctly connected and insulated to prevent high temperatures from causing harm to the surrounding environment and personnel. At the same time, the size and location of the fuel tank must be planned reasonably to ensure the stability and safety of fuel supply. During installation, local regulations for machine rooms and environmental protection must be strictly followed to ensure the compliance of the entire system.
The fixed base of a diesel generator set is the key structure that supports the entire equipment. Correct installation of the base is the foundation for ensuring the stable operation of the generator set.

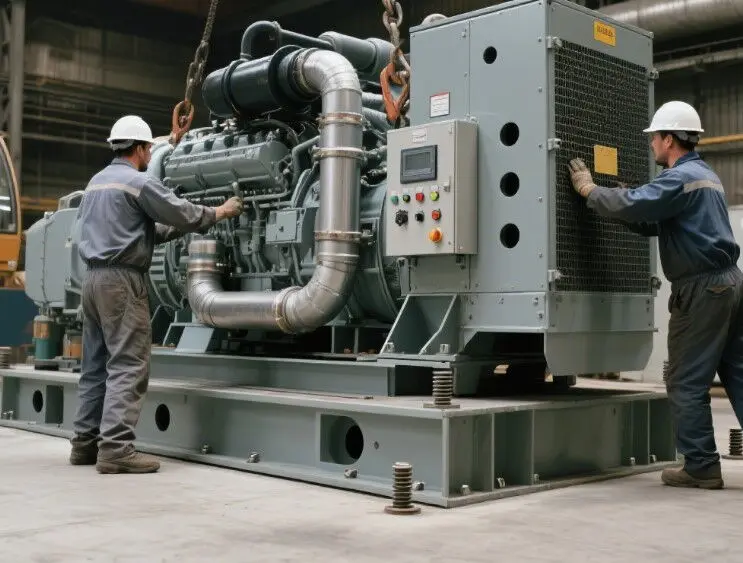

The base of a diesel generator set is usually made of sturdy materials, with multiple holes pre-drilled on its surface. These holes are used to assemble the generator set with bolts. The holes on the base surface are relatively large, which helps ensure smooth installation between the base and the generator set. Through this design, the generator set can be firmly fixed on the base, thereby ensuring its stability during operation.
During operation, diesel generators produce significant vibrations. If a diesel generator is directly rigidly connected to the base, these vibrations will be directly transmitted to the base, thereby affecting the stability of the generator and radiator, and may even lead to accidents. Therefore, to reduce the impact of vibrations on the equipment, it is necessary to place vibration isolation pads between the diesel generator and the base. The type and layout of the vibration isolators are crucial for the vibration isolation effect. When only a small amount of vibration needs to be transmitted, rubber vibration isolation pads can be used. For light and heavy vibrations, a combination of steel springs and rubber pads is a better choice. The vibration isolators should be symmetrically arranged according to the centerline of the diesel generator, which can ensure that vibrations are effectively controlled in all directions. The deployment of vibration isolators can be in a clockwise or counterclockwise direction, depending on the structure and operating requirements of the generator set. When there are six mounting points for the vibration isolators of a diesel generator, four are usually deployed at the four corners of the plastic block or I-beam axis seat, and the other two are arranged on the left and right sides. By adjusting their positions, the deformation variables of the vibration isolators should be as consistent as possible with the connections between the ground and the plastic block or I-beam axis seat.
When installing the base, first set up the I-beam axis seat under the diesel generator base and assemble the rebar lap length. The I-beam axis seat is fixed to the vibration isolators with anchor bolts (lifting torsion spring sealing rings). Anchor bolts are set on the ground or floor, and the entire device is fixed to the ground or floor according to the anchor bolts. It should be noted that the structural line cannot pass through the structural line of the plastic block, and the supporting area of the I-beam axis seat cannot be less than the total area of the vibration isolators. The handling of these details is crucial for ensuring the stability and reliability of the entire installation structure.
The foundation of the generator set is another key element in the entire installation process. A solid and stable foundation can effectively support the weight of the generator set and withstand the impact forces and vibrations generated during its operation.
Generally speaking, a concrete installation foundation is a reliable and simple installation method, and it is recommended that users prioritize it. When pouring the concrete base, it is essential to ensure that the surface of the concrete is flat and free of any damage. It is recommended that users combine the use of a spirit level or similar instrument for the installation of the unit and its exhaust system to ensure the levelness of the entire equipment. Under normal circumstances, the height of the concrete platform for the basic base of a diesel generator set only needs to be between 100 and 200 mm. The subsoil used to make the concrete platform must also have sufficient load-bearing strength to support the total gross weight of the equipment and the concrete foundation above it.
The hardness and stability of the foundation are crucial. It must be strong enough to support the weight of the entire generator set and not deform. Otherwise, it may lead to misalignment of components such as the diesel engine, main alternator, and accessories, thereby affecting the normal operation of the equipment. In addition, the foundation must be able to withstand the unbalanced impact forces and vibrations generated during the operation of the generator set. The foundation should not be connected to other foundations of the building to avoid mutual influence. The width and depth of the foundation must meet the requirements to ensure that it can provide sufficient support. At the same time, the surface of the foundation must be flat and smooth, which helps reduce friction and wear during equipment operation. If conditions permit, users can set up a drainage ditch near the foundation to facilitate the timely discharge of wastewater and contaminated oil. In addition, a trench for the generator's power distribution output cable can also be reserved to facilitate cable layout and maintenance.
After installation, a series of inspection and maintenance tasks must be carried out to ensure the long-term stable operation of the generator set.
After installation, first check whether the generator set is firmly fixed on the base and whether all bolts are tightened. Second, check whether the vibration isolators are installed correctly and can effectively reduce the vibrations during equipment operation. In addition, it is necessary to check whether the exhaust pipe connections are secure and whether the insulation measures are in place. The size and location of the fuel tank should also be checked, as well as the effectiveness of the machine room's noise reduction measures.
Regular maintenance is the key to ensuring the long-term stable operation of the generator set. Maintenance tasks include regularly checking the operating condition of the equipment, promptly replacing worn parts, cleaning the equipment surface, and checking the levels of lubricating oil and coolant. In addition, the performance of the vibration isolators must be regularly checked to ensure that they can continue to effectively reduce vibrations. The exhaust pipe and fuel tank also need to be regularly inspected and maintained to ensure their normal operation.
The installation of the base of a diesel generator set is a complex but crucial process. By reasonably selecting the installation location, ensuring the load-bearing capacity of the floor, taking effective vibration isolation measures, constructing a solid and stable foundation, and conducting strict inspections and maintenance, the generator set can operate efficiently and safely. During the installation process, local machine room requirements and environmental protection regulations must be strictly followed to ensure the compliance of the entire system. It is hoped that the introduction in this article can help readers better understand and master the relevant knowledge of the base installation of diesel generator sets, so that they can successfully complete the installation task in actual operations and ensure the stable operation of the generator set.
