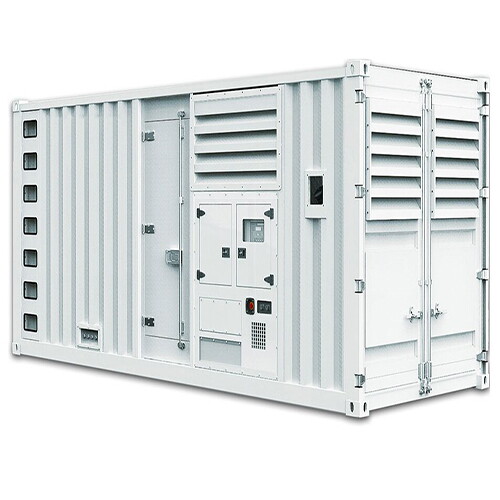

640kW Container Generator, Perkins Engine, 50Hz, Water Cooled
Key Specifications / Features
Model No.: GGS-240321-CGS-01
Hits: 21
Introducing our Containerized Perkins Powered Diesel Generator, delivering a prime power of 640kW (800kVA) at a frequency of 50Hz. Equipped with a reliable 4-stroke, 6-cylinder engine, this generator ensures efficient performance. Trust in our generator for reliable and robust power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 640kW Container Generator
Model: GGS-800-P
Prime Power: 640kW, 800kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine: Perkins 4006-23TAG3A, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford HCI634G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Diesel Fuel
Technical Data
| Generator Specification | |
| Generator Model | GGS-800-P |
| Frequency | 50Hz |
| Prime Power | 640kW/800kVA |
| Standby Power | 720kW/900kVA |
| Rated Voltage | 400V (Available with custom requirements) |
| Dimension (L x W x H) (mm) | 20FT Container |
| Net Weight (KG) | 8200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4006-23TAG3A |
| Prime Power | 705kW |
| Standby Power | 786kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 22.92 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
