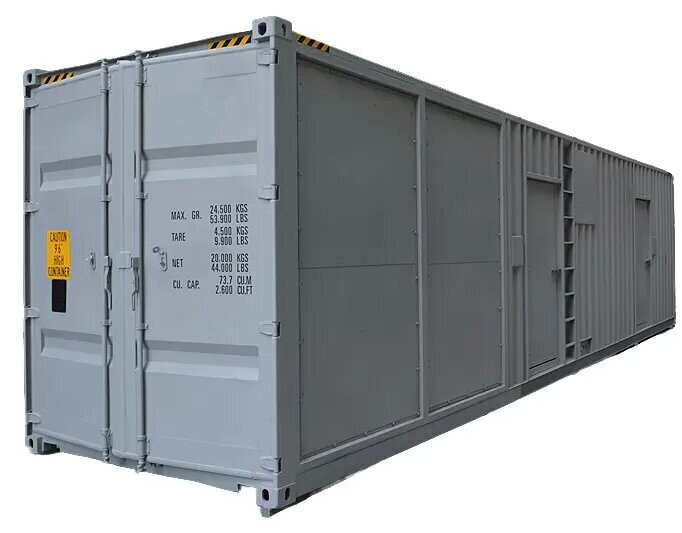

1800kW Container Generator, 50Hz, Perkins Engine, 16 Cylinder
Key Specifications / Features
Model No.: GGS-240314-CGS-02
Hits: 15
Introducing our Container Type Diesel Generator, a powerhouse solution delivering prime power of 1800kW (2250kVA). Featuring a formidable 16-cylinder Vee Perkins engine, this generator ensures reliable and efficient performance for your power needs. Cooled through water for optimal operation, it's housed in a robust container for durability and ease of transport. Trust in our generator to provide dependable power whenever and wherever you need it.
Request a quote
Tags
Detail Information
Product Name: 1800kW Container Generator
Model: GGS-2250-P
Frequency: 50Hz
Engine Brand: Perkins
Prime Power: 1800kW, 2250kVA
Voltage: 240V, 400V
Engine Type: 4 Stroke, 16 Cylinder, Vee Form
Cooling System: Water-cooled
Alternator Type: 3 Phase 4 Wire, Brushless, PMG Exciter, DVR
Technical Data
| Generator Specification | |
| Generator Model | GGS-2250-P |
| Frequency | 50Hz |
| Prime Power | 1800kW / 2250kVA |
| Standby Power | 2000kW / 2500kVA |
| Rated Current | 3247A@400V |
| Dimension (L x W x H) (mm) | 6200 x 2300 x 2800 |
| Net Weight (KG) | 16000 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4016-61TRG3 |
| Prime Power | 1975kW |
| Standby Power | 2183kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 16 Cylinder Vee Form |
| Cycle | 4 Stroke |
| Displacement | 61.1 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500rpm |
| Governor Type | Electric Start |
| Alternator Specification | |
| Alternator Model | LSA 51.2 VL85 |
| Exciting Type | Brushless, PMG Exciter, DVR |
| Rated Voltage | 400V/230V Adjustable |
| Wiring Type | 3 Phase 4 Wire |
| Power Factor | 0.8 Lagged |
| Protection Grade | IP23 |
| Insulation Class | H |
