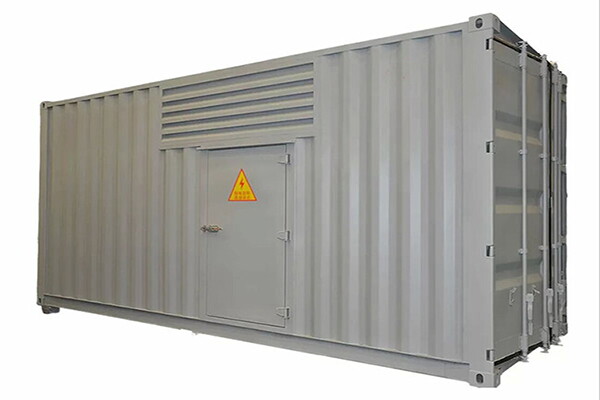

1200 kW Container Generator, 50Hz, Yucai, 4 Stroke 12 Cylinder
Key Specifications / Features
Model no.: GGS-240314-CGS-01
Hits: 1
Introducing our Quality Container Generator, delivering robust power with a real output of 1200kW and an apparent power of 1500kVA. Operating at 50Hz, this generator is equipped with a reliable 4-stroke, 12-cylinder engine. Housed in a sturdy container, it ensures durability and ease of transportation. Trust in our generator for dependable and efficient power supply for your applications.
Request a quote
Tags
Detail Information
Product Name: 1200kW Container Generator
Model: GGS-1500-Y
Frequency: 50Hz
Engine Brand: Yucai
Prime Power: 1200kW, 1500kVA
Voltage: 240V, 400V
Engine Type: 4 Stroke, 12 Cylinder in Line
Cooling System: Water-cooled
Alternator Type: 3 Phase 4 Wire, Brushless, Self-Exciter, AVR
| Generator Specification | |
| Generator Model | GGS-1500-Y |
| Frequency | 50Hz |
| Prime Power | 1200kW / 1500kVA |
| Standby Power | 1350kW / 1650kVA |
| Rated Current | 2176A |
| Dimension (L x W x H) (mm) | 5546 x 1650 x 2218 |
| Net Weight (KG) | 13112 |
| Engine Specification | |
| Engine Brand | Yucai |
| Engine Model | YC12VC2070-D31 |
| Prime Power | 1380kW /1725kVA |
| Standby Power | 1520kW /1900kVA |
| Cooling System | Water Cooled |
| Induction System | Turbocharged & Intercooled |
| Fuel Supply System | Electronic Unit Pump |
| Number of Cylinders | Vertical, 12 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 79.17 L |
| Bore x Stroke | 200 x 210 mm |
| Compression Ratio | 13.5:1 |
| Rated Speed | 1500rpm |
| Governor Type | Electric Start |
| Alternator Specification | |
| Exciting Type | Brushless, Self-Exciter, AVR |
| Rated Voltage | 400V/230V |
| Wiring Type | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
