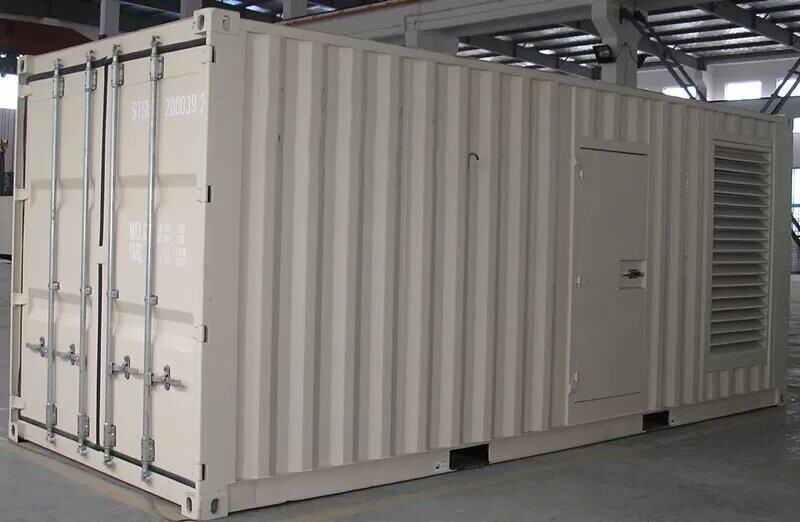

1625kVA Container Generator, Cummins, 4 Stroke, 16 Cylinder
Key Specifications / Features
Model No.: GGS-240320-CGS-03
Hits: 16
Introducing our Cummins Powered Container Type Generator, delivering a prime power output of 1300kW (1625kVA) at 60Hz. This generator is equipped with a robust 4-stroke, 16-cylinder engine for reliable performance. Trust in our generator for efficient and dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 1625kVA Container Generator
Model: GGS-1625-C
Fuel: Diesel
Frequency: 60Hz
Prime Power: 1300kW, 1625kVA
Rated Current: 1440A
Rated Voltage: 480V, 277V
Cooling System: Water-cooled
Engine Model: Cummins KTA50-G9
Engine Type: 4 Stroke, 16 Cylinder, V Type
Alternator Type: Brushless, Self-excited, AVR
Phase/Wire: 3 Phase, 4 Wire
Technical Data
| Generator Specification | |
| Generator Model | GGS-1625-C |
| Frequency | 60Hz |
| Rated power | 1300kW/1625kVA |
| Standby power | 1430kW/1788kVA |
| Rated Current | 2340A |
| Rated Voltage | 480V, 277V |
| Fuel | Diesel |
| Dimension (L x W x H) (mm) | 12060 x 2440 x 2730 |
| Engine Specification | |
| Engine Model | Cummins KTA50-G9 |
| Aspiration | Turbocharged/After-cooled |
| Cooling System | Water-cooled |
| Number of Cylinders | 16 Cylinder V Type |
| Cycle | 4 Stroke |
| Compression Ratio | 13.9:1 |
| Displacement | 50 L |
| Bore x Stroke | 159 x 159 mm |
| Rated Speed | 1800 RPM |
| Governor Type | Electronic |
| Start Mode | DC 24V Electric Start |
| Alternator Specification | |
| Alternator Model | STAMFORD PI 734B |
| Alternator Type | Brushless, Self-excited, AVR |
| Phase/Wire | 3 Phase / 4 Wire |
| Rated Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
