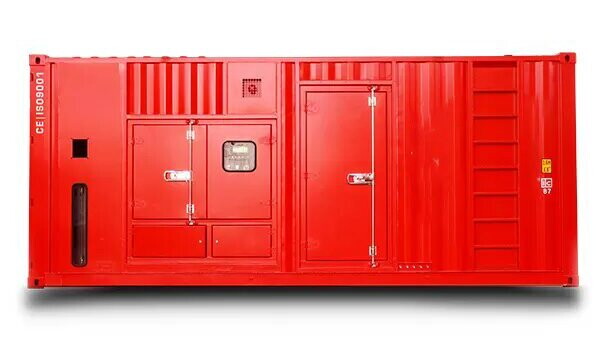

800kW Container Generator, Perkins, 50Hz, 4 Stroke, 8 Cylinder
Key Specifications / Features
Model No.: GGS-240314-CGS-03
Hits: 17
Introducing our Container Generator, a reliable power solution with a prime power output of 800kW (1000kVA). Powered by a sturdy 4-stroke, 8-cylinder Perkins engine, this generator ensures efficient performance. Equipped with a brushless AVR alternator, it guarantees stable power output for your applications. Housed in a durable container, it's designed for easy transportation and deployment. Trust in our generator to provide dependable power whenever and wherever it's needed.
Request a quote
Tags
Detail Information
Product Name: 800kW Container Generator
Model: GGS-800-P
Frequency: 50Hz
Engine Brand: Perkins
Prime Power: 800kW, 1000kVA
Voltage: 220V, 380V
Engine Type: 4 Stroke, 8 Cylinder in Line
Cooling System: Water-cooled
Alternator Type: 3 Phase 4 Wire, Brushless, PMG Exciter, AVR
Technical Data
| Generator Specification | |
| Generator Model | GGS-800-P |
| Frequency | 50Hz |
| Prime Power | 800kW / 1000kVA |
| Standby Power | 880kW / 1100kVA |
| Rated Current | 1519A |
| Dimension (L x W x H) (mm) | 5300 x 1870 x 2500 |
| Net Weight (KG) | 7900 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4008TAG2 |
| Prime Power | 899kW |
| Standby Power | 985kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 8 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 30.6 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500rpm |
| Governor Type | Electric Start |
| Alternator Specification | |
| Alternator Model | TAL-A49-E |
| Exciting Type | Brushless, PMG Exciter, AVR |
| Rated Voltage | 380V/220V Adjustable |
| Wiring Type | 3 Phase 4 Wire |
| Power Factor | 0.8 Lagged |
| Protection Grade | IP23 |
| Insulation Class | H |
