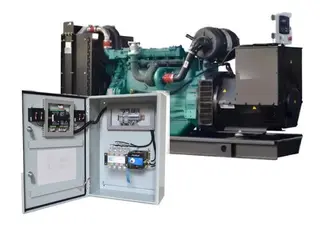

Application of Dual-power ATS in Diesel Generator Systems

In modern power systems, ensuring a reliable power supply is crucial for key sectors such as industry, healthcare, and transportation. Diesel generators serve as the core backup power source during mains power outages, providing critical energy support. The dual power automatic transfer switch (ATS) is essential for seamless transitions between the mains supply and the diesel generator, directly impacting the stability and safety of the backup power system. This article provides an in-depth analysis of the working principles, installation, commissioning, features, and applications of dual power automatic transfer switches in diesel generator systems to enhance understanding of their vital role.

Overview of Dual Power Automatic Transfer Switches

A dual power automatic transfer switch is a microprocessor-controlled device designed to automatically switch between two power sources, ensuring uninterrupted power supply to connected loads. In diesel generator systems, the switch is primarily used to:
Switch to generator power during mains power failure or outage.
Revert to mains power when it is restored, minimizing generator runtime.

Core Features

High Reliability: Rapid response to power outages with switching times as short as a few seconds.
Intelligent Control: Supports voltage and frequency monitoring with delay protection to avoid false switching.
Broad Compatibility: Compatible with various power sources, such as mains-generator or dual mains systems.

Working Principle of Dual Power Automatic Transfer Switches

The dual power ATS ensures continuous and reliable power supply through intelligent design and swift response during power disruptions. Below is a detailed explanation of its operation in different scenarios.

1. Switching During Mains Outages

When a mains power outage occurs, the ATS control module detects voltage drops or complete power loss and initiates the diesel generator.
Once the generator stabilizes, the ATS transfers the load to the generator side, typically within 20 seconds.

2. Switching When Mains Power Restores

The ATS monitors the stability of restored mains power, including voltage and frequency recovery to the rated range.
After a delay (usually 10–20 seconds), the ATS transfers the load back to mains power and signals the generator to shut down. The generator stops after a further delay (approximately 40 seconds) to prevent frequent restarts due to transient fluctuations.

3. Priority Rules and Delay Mechanisms

Priority Rules: Mains power is typically prioritized to enhance cost-efficiency and environmental sustainability.
Delay Mechanisms: Prevents false switching due to transient voltage fluctuations, protecting both load equipment and the generator.

Installation and Commissioning Guidelines

Proper installation and commissioning are critical for ensuring system stability and safety. Each phase, from preparation to wiring and testing, must be meticulously executed to guarantee efficient operation during emergencies.

1. Preparation Before Installation

Equipment Inspection: Check the ATS for physical integrity, insulation, continuity, and grounding.
Wiring Verification: Confirm the correct wiring of mains and generator inputs, with the load connected to the output of the ATS.

2. Wiring Details

Signal Wiring: Connect a 220V signal wire from the mains panel to the generator's auto-start controller to trigger generator startup.
Power Input Priority: Connect the mains to the non-delay side and the generator to the delay side.
Phase Calibration: Ensure phase alignment between mains and generator power to avoid conflicts during switching.

3. Testing and Commissioning

Switching Test: Simulate mains outages and restorations to verify generator startup, switching time, and return process.
Load Testing: Operate under rated load conditions to confirm the stable performance of the ATS and generator.
Safety Inspection: Follow strict electrical safety protocols to protect personnel and equipment during operations.

Features of Dual Power Switching Systems

Dual power switching systems are a core component of diesel generator solutions, offering efficiency, reliability, and intelligent functionality to meet the stringent demands of critical loads.

1. Automation and Intelligence

Equipped with advanced control modules, ATS devices monitor power conditions in real-time and respond quickly to anomalies, enabling unmanned operation.

2. Safety and Reliability

Features such as anti-misoperation mechanisms ensure safe switching without accidental closures or disconnections.
Delay mechanisms prevent frequent switching and reduce wear on generators caused by power fluctuations.

3. Flexibility and Adaptability

In addition to supporting mains-to-generator transitions, ATS devices can manage dual mains or other power combinations, catering to diverse power scenarios.

Conclusion

The dual power automatic transfer switch (ATS) is a vital part of diesel generator systems, ensuring smooth power transitions and protecting important operations during power outages. Its smart design, quick response, and reliable performance help maintain the stability and efficiency of backup power systems, making it essential for industries that rely on continuous power. By following proper design, installation, and testing procedures, the ATS can improve system reliability and extend its life. As technology advances, future ATS solutions will offer even more flexibility, automation, and adaptability, helping backup power systems meet the growing needs of modern energy applications with greater efficiency and dependability.
