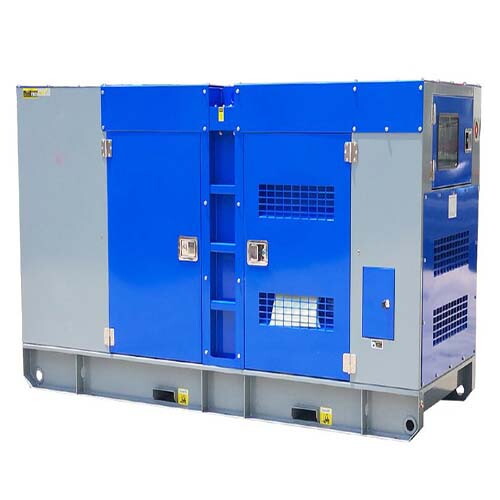

64kW 80kVA Silent Generator, Perkins 1104A-44TG2, 4 Cylinder
Key Specifications / Features
Model No.: GGS-240325-SGS-01
Hits: 40
Introducing our silent type diesel generator, supplying 64 kW (80 kVA) of power. Powered by a 4-stroke, 4-cylinder Perkins 1104A-44TG2 engine and equipped with a Leroy Somer TAL-A44-C alternator, this generator operates at a noise level of 70 dBA at 7 meters. Trust in our generator for quiet and reliable power supply in various settings.
Request a quote
Tags
Detail Information
Product Name: 64kW 80kVA Silent Generator
Model: GGS-80-P
Prime Power: 64kW, 80kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Noise Level: 70dBA at 7 Meters
Engine Model: Perkins 1104A-44TG2
Engine Type: 4 Stroke, 4 Cylinder Vertical in Line
Alternator Model: Leroy Somer TAL-A44-C
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-135-P |
| Frequency | 50Hz |
| Prime Power | 108kW/135kVA |
| Standby Power | 120kW/150kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 3100 × 1080 × 1600 |
| Gross Weight (KG) | 1850 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1106A-70TG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 7 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 16.0:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
