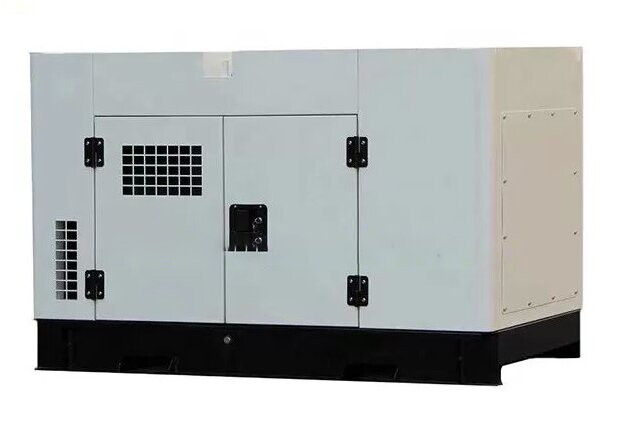

24kW 30kVA Silent Generator, 50Hz, Perkins Engine, 3 Phase

Key Specifications / Features

Model No.: GGS-240314-SGS-01
Hits: 5
Introducing our 24kW Silent Generator, designed for quiet and efficient power generation. With a 30kVA rating at 50Hz, powered by a Perkins engine, it offers adjustable voltage options of 400V and 230V. Operating at a low noise level of 67dBA at 7m, it ensures minimal disturbance. Featuring a 4-stroke, 3-cylinder engine and a brushless alternator, it delivers stable power output in a compact and silent package.
Request a quote

Detail Information


Product Name: 24kW 30kVA Silent Generator
Model: GGS-33-P
Frequency: 50Hz
Engine Brand: Perkins
Prime Power: 24kW / 30kVA
Voltage: 400V, 230V Adjustable
Noise Level (7m): 67dBA
Engine Type: 4 Stroke, 3 Cylinder Vertical in Line
Alternator Type: 3 Phase, Brushless, AVR


Technical Data


Generator Specification
Generator Model GGS-30-P
Frequency 50Hz
Rated Power 24kW / 30kVA
Standby Power 26.4kW / 33kVA
Dimension (L x W x H) (mm) 4830 x 1740 x 2070
Net Weight (KG) 5400
Noise Level (7m) 67dBA
Engine Specification
Engine Brand Perkins
Engine Model 1103A-33G
Prime Power 28.2kW
Standby Power 31kW
Type of Injection Direct Injection
Cooling System Water Cooled
Aspiration Naturally Aspirated
Number of Cylinders 3 Cylinder Vertical in Line
Cycle 4 Stroke
Displacement 2.2 L
Bore x Stroke 160 x 190 mm
Compression Ratio 19.25:1
Rated Speed 1500rpm
Start Mode DC24V Electric Start
Governor Type Mechanical
Alternator Specification
Alternator Model Leroy Somer TAL-A42-C
Exciting Type Brushless, AVR
Rated Voltage 400V/230V Adjustable
Wiring Type 3 Phase 12 Wire
Power Factor 0.8 Lagged
Protection Grade IP23
Insulation Class H
