3 Cylinder Silent Generator, 7.2kW 9kVA, 50Hz, Perkins Engine
Key Specifications / Features
Model No.: GGS-240314-SGS-03
Hits: 17

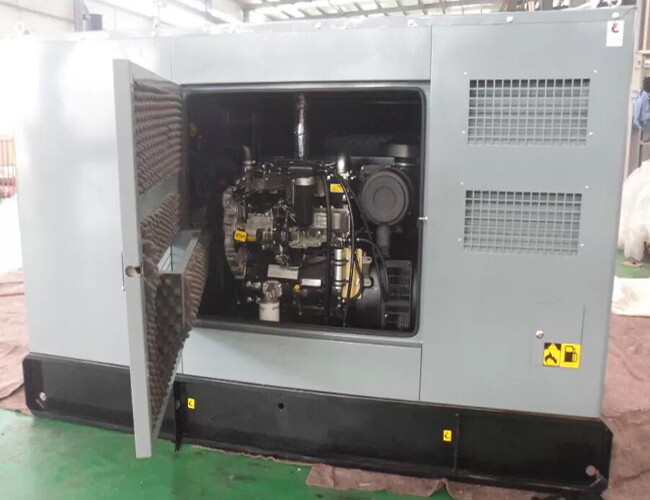

Introducing our 3 Cylinder Silent Generator, delivering reliable and quiet power generation. Operating at 50Hz, this generator features a Perkins engine and offers a power output of 7.2kW (9kVA). With voltage options of 400V or 230V, it suits various applications. Powered by a 4-stroke, 3-cylinder engine and equipped with a brushless alternator, it ensures stable power output. Featuring a 3 Phase 4 Wire configuration, it provides versatility for electrical setups. Trust in our generator for efficient and silent power production.
Request a quote
Tags
Detail Information
Product Name: 3 Cylinder Silent Generator
Model: GGS-9-P
Frequency: 50Hz
Engine Brand: Perkins
Prime Power: 7.2kW, 9kVA
Voltage: 400V, 230V Adjustable
Noise Level (7m): 65-70dBA
Engine Type: 4 Stroke, 3 Cylinder in Line
Wiring Type: 3 Phase 4 Wire
Alternator Type: Brushless, Self-excited
Technical Data
| Generator Specification | |
| Generator Model | GGS-9-P |
| Frequency | 50Hz |
| Prime Power | 7.2kW / 9kVA |
| Standby Power | 8 kW / 10kVA |
| Noise Level | 65-70dBA @ 7 m |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 403D-11G |
| Rated Power | 9.3kW |
| Cooling System | Closed-circuit Cooling System |
| Aspiration | Turbocharged |
| Number of Cylinders | 3 Cylinders in Line |
| Cycle | 4 Stroke |
| Displacement | 1.311 L |
| Bore x Stroke | 77 x 81 mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1500 rpm |
| Start Mode | Electronic Start |
| Governor Type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Exciting Type | Brushless, Self-excited |
| Rated Voltage | 400V/230V Adjustable |
| Wiring Type | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
