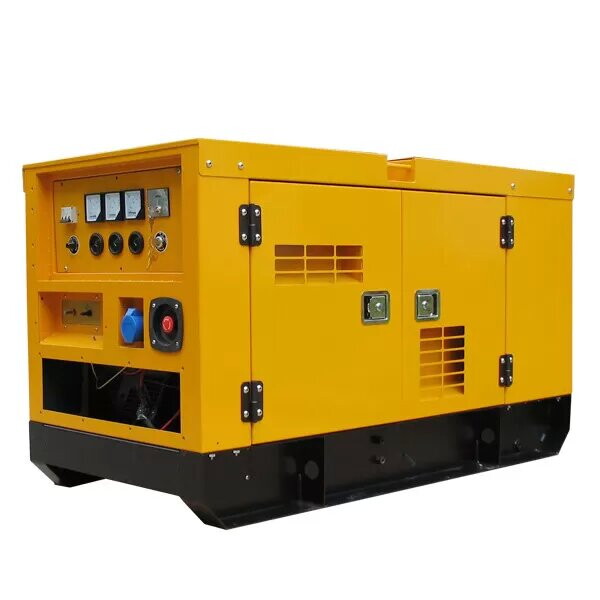

4 Stroke Silent Generator, 10kW 12.5kVA, 50Hz, Kubota Engine

Key Specifications / Features

Model No.: GGS-240321-SGS-01
Hits: 1
Introducing our Four Stroke Silent Type Diesel Generator, delivering a prime power output of 10kW (12.5kVA). This generator is powered by a reliable 4-cylinder Kubota engine and features water cooling for optimal performance. Trust in our generator for quiet and efficient power generation in various applications.
Request a quote

Detail Information


Product Name: 4 Stroke Silent Generator
Model: GGS-12.5-K
Prime Power: 10kW, 12.5kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Fuel: Diesel
Noise Level: 68 dB at 7 Meters Away
Engine Model: Kubota V1505-E2BG
Engine Type: 4 Stroke, 4 Cylinder in Line
Alternator Model: Stamford PI044F
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled

Technical Data

Generator Specification
Generator Model GGS-12.5-K
Frequency 50Hz
Prime Power 10kW / 12.5kVA
Standby Power 11kW / 14kVA
Rated Voltage 230V/400V
Noise Level 68 dB at 7 meters away
Engine Specification
Engine Brand Kubota
Engine Model V1505-E2BG
Prime Power 13.7kW
Standby Power 15.4kW
Cooling System Water Cooled
Aspiration Natural Aspiration
Number of Cylinders 4 Cylinder Vertical in Line
Cycle 4 Stroke
Displacement 1.498 L
Bore x Stroke 78 x 78.4 mm
Compression Ratio 22:1
Rated Speed 1500 RPM
Governor Type Electrical
Alternator Specification
Alternator Brand Stamford
Alternator Model PI044F
Excitation system Brushless, Self-excited, AVR
Number of phase 3 Phase 4 Wire , Y type connection
Power Factor 0.8
Protection Grade IP23
Insulation Class H
