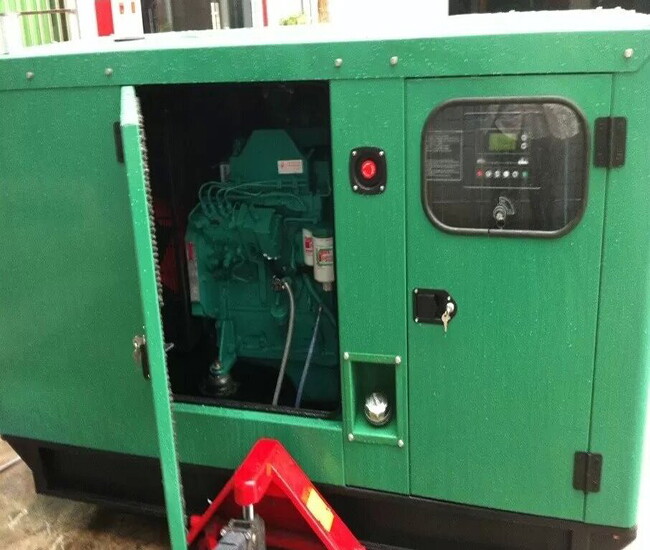

3 Phase Silent Generator, 100kW 125kVA, 50Hz or 60Hz, Cummins
Key Specifications / Features
Model No.: GGS-240314-SGS-02
Hits: 16
Introducing our 3 Phase Silent Generator, your reliable power solution for quiet operation. Available at 50Hz or 60Hz, this generator offers a robust 100kW (125kVA) output, powered by a dependable Cummins engine. With adjustable voltage options of 400V and 230V, it suits various applications. Operating at a noise level of 70dBA at 7m, it ensures minimal disturbance. Featuring a 4-stroke, 6-cylinder engine, it delivers stable power output in a compact and silent package. Trust in our generator for efficient and quiet power generation.
Request a quote
Tags
Detail Information
Product Name: 3 Phase Silent Generator
Model: GGS-125-C
Frequency: 50Hz or 60Hz
Engine Brand: Cummins
Prime Power: 100kW, 125kVA
Voltage: 400V, 230V Adjustable
Noise Level (7m): 70dBA
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: 3 Phase, Brushless, Self-excited, AVR
Technical Data
| Generator Specification | |
| Generator Model | GGS-125-C |
| Frequency | 50Hz or 60 Hz |
| Prime Power | 100kW / 125kVA |
| Dimension (L x W x H) (mm) | 2250 x 800 x 1300 |
| Net Weight (KG) | 1250 |
| Noise Level (7m) | 70dBA |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinders in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 or 1800 rpm |
| Start Mode | Electric Start |
| Governor Type | Electrical |
| Alternator Specification | |
| Alternator Model | Stamford UCI274E |
| Exciting Type | Brushless, Self-excited, AVR |
| Rated Voltage | 400V/230V Adjustable |
| Wiring Type | 3 Phase 4 Wire |
| Power Factor | 0.8 Lagged |
| Protection Grade | IP23 |
| Insulation Class | H |
