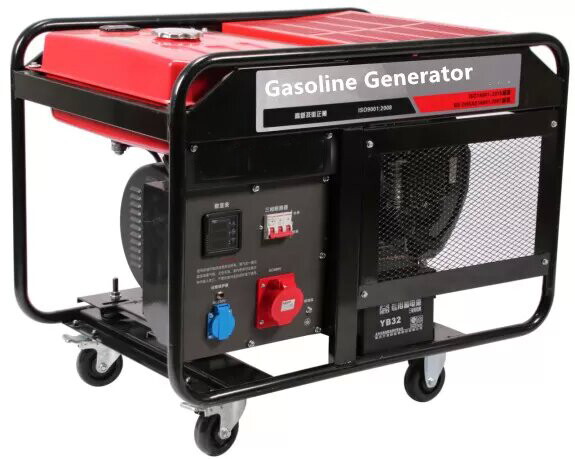

Water Cooled Portable Generator, 25kW, 4 Cylinder, 4 Stroke
Key Specifications / Features
Model No.: GGS-240312-PG-06
Hits: 19
Introducing our Water Cooled Portable Generator, a robust power solution with a 25kW capacity. Fueled by gasoline, this generator offers a rated AC voltage of 120V, 220V, and 380V, catering to diverse electrical needs. Featuring a water-cooled system and powered by a reliable 4-cylinder, 4-stroke engine, it ensures efficient and stable performance. Equipped with a brushless alternator, this generator guarantees reliable power output for various applications.
Request a quote
Tags
Detail Information
Product Name: Water Cooled Portable Generator
Model: GGS-25
Fuel: Gasoline
Frequency: 50Hz or 60Hz
Rated Output: 25kW
Rated AC Voltage: 120V, 220V, 380V
Cooling Method: Water Cooled
Engine Type: 4 Cylinder, 4 Stroke
Phase: Single Phase or 3 Phase
Alternator Type: Self-excited, AVR, 100% Copper Coil, Brushless
Dimension (L x W x H): 1300 x 800 x 800 mm
Technical Data
| Generator Set Model | GGS-25 |
| Frequency | 50 Hz or 60 Hz |
| Rated Output | 25kW |
| Max. Output | 28kW |
| Rated AC Voltage | 120V, 220V, 380V |
| Power Factor | 0.8 / 1 |
| Phase | Single Phase / 3 Phase |
| Alternator Type | Self-excited, AVR, 100% Copper Coil, Brushless |
| Starting System | Electric Start with Battery |
| Fuel Tank Capacity | 40 L |
| Engine Type | Water Cooled, 4 Stroke, 4 Cylinder, Gasoline Engine |
| Bore × Stroke (mm) | 70 x 78 |
| Lubrication Oil Volume (L) | 3 |
| Dimension ( L x W x H) (mm) | 1300 x 800 x 800 |
| Net Weight (KG) | 320 kg |
