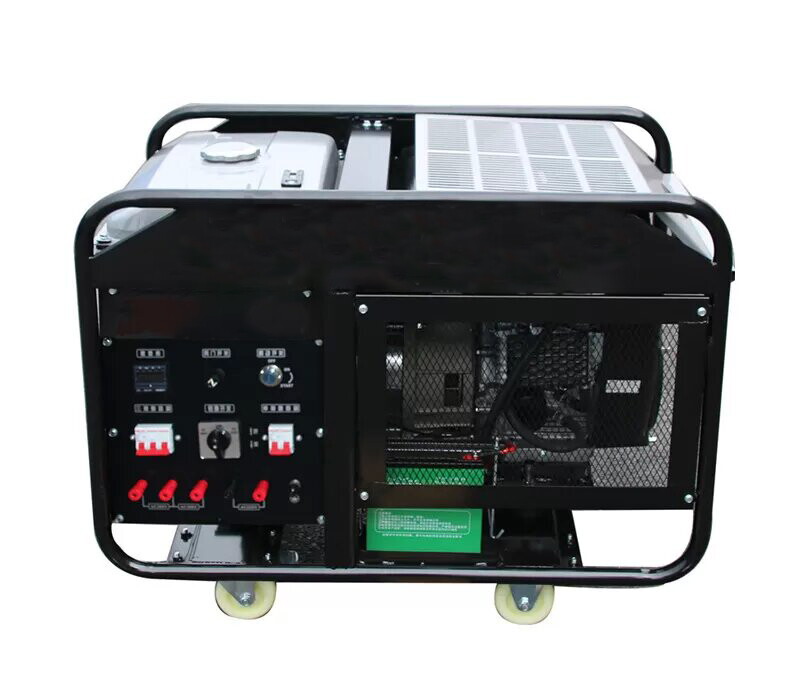

Single Cylinder Portable Generator, 7.5kW, 4 Stroke, Air Cooled
Key Specifications / Features
Model No.: GGS-240312-PG-03
Hits: 13
Introducing the Single Cylinder Portable Generator from a reputable factory, delivering reliable power at 7.5kW. Fueled by gasoline and operating at either 50Hz or 60Hz, this generator is designed for versatility. With a compact single-cylinder, 4-stroke engine and efficient air cooling, it ensures dependable performance. Equipped with a self-excited AVR (Automatic Voltage Regulator) and a brushless alternator, this generator offers stability in power output. Ideal for various applications, it provides a portable and efficient solution for your electricity needs.
Request a quote
Tags
Detail Information
Product Name: Single Cylinder Portable Generator
Model: GGS-7.5
Fuel: Gasoline
Frequency: 50Hz or 60Hz
Rated Output: 7.5kW
Rated AC Voltage: 120V, 220V, 380V
Cooling Method: Air Cooled
Engine Type: Single Cylinder, 4 Stroke
Phase: Single Phase or 3 Phase
Alternator Type: Self-excited, AVR, 100% Copper Coil, Brushless
Dimension (L x W x H): 685 x 550 x 570 mm
Technical Data
| Generator Set Model | GGS-7.5 |
| Frequency | 50 Hz or 60 Hz |
| Rated Output | 7.5kW |
| Max. Output | 8kW |
| Rated AC Voltage | 120V, 220V, 380V |
| Power Factor | 0.8 / 1 |
| Phase | Single Phase / 3 Phase |
| Alternator Type | Self-excited, AVR, 100% Copper Coil, Brushless |
| Starting System | Electric Start with Battery |
| Noise Level dB(A) at 7m | 68 Db |
| Fuel Tank Capacity | 25 L |
| Engine Type | Air Cooled, 4 Stroke OHV, Single Cylinder, Gasoline Engine |
| Bore × Stroke (mm) | 92 x 66 |
| Lubrication Oil Volume (L) | 1.1 |
| Dimension ( L x W x H) (mm) | 685 x 550 x 570 |
| Net Weight (KG) | 90 kg |
