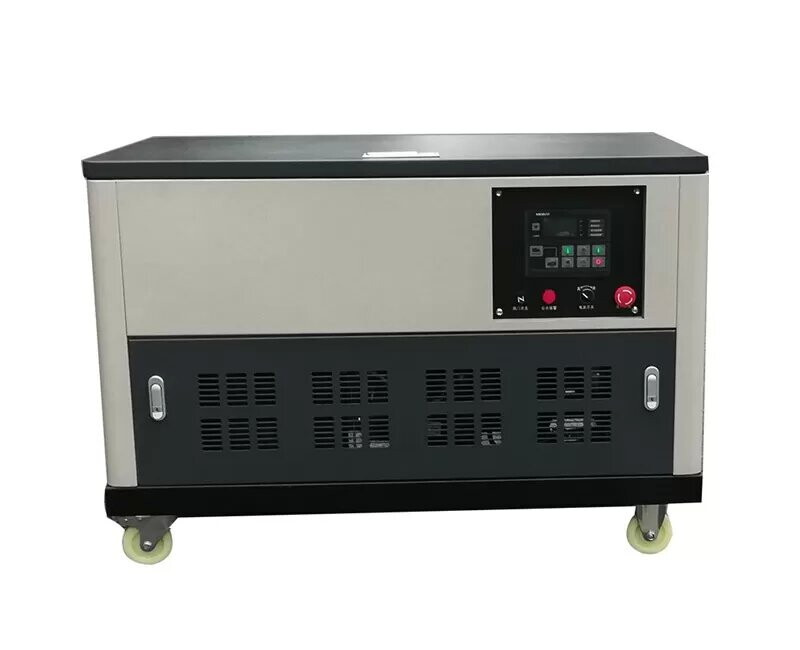

18kW Portable Generator, 50Hz or 60Hz, Brushless Alternator
Key Specifications / Features
Model no.: GGS-240312-PG-05
Hits: 1
Introducing our 18kW Portable Generator, a versatile and efficient power source. Fueled by gasoline, this generator provides a rated AC voltage of 120V, 220V, and 380V, catering to diverse electrical needs. Featuring an air-cooled system and powered by a reliable 2-cylinder, 4-stroke engine, it ensures efficient performance. Equipped with a brushless alternator, this generator guarantees stable and reliable power output for various applications. Count on this generator for a dependable and flexible solution to your electricity requirements.
Request a quote
Tags
Detail Information
Product Name: 18kW Portable Generator
Model: GGS-18
Fuel: Gasoline
Frequency: 50Hz or 60Hz
Rated Output: 18kW
Rated AC Voltage: 120V, 220V, 380V
Cooling Method: Air Cooled
Engine Type: 2 Cylinder, 4 Stroke
Phase: Single Phase or 3 Phase
Alternator Type: Self-excited, AVR, 100% Copper Coil, Brushless
Dimension (L x W x H): 1000 x 670 x 690 mm
Technical Data
| Generator Set Model | GGS-18 |
| Frequency | 50 Hz or 60 Hz |
| Rated Output | 18kW |
| Max. Output | 20kW |
| Rated AC Voltage | 120V, 220V, 380V |
| Power Factor | 0.8 / 1 |
| Phase | Single Phase / 3 Phase |
| Alternator Type | Self-excited, AVR, 100% Copper Coil, Brushless |
| Starting System | Electric Start with Battery |
| Noise Level dB(A) at 7m | 80 Db |
| Fuel Tank Capacity | 30 L |
| Engine Type | Air Cooled, 4 Stroke OHV, 2 Cylinder, Gasoline Engine |
| Bore × Stroke (mm) | 90 x 78 |
| Lubrication Oil Volume (L) | 2 |
| Dimension ( L x W x H) (mm) | 1000 x 670 x 690 |
| Net Weight (KG) | 210 kg |

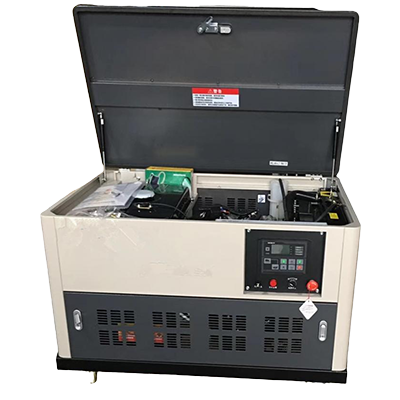

18 kW Portable Gasoline Generator
The 18 kW Portable Gasoline Generator is built for high performance, reliability, and ease of use, making it an excellent choice for both home and professional use. With advanced technology and robust features, this generator provides dependable power in any situation.
High Reliability & Low Maintenance: Designed for long service life, this generator is maintenance-free, waterproof, and dustproof, capable of handling tough environments. It runs efficiently with a temperature rise not exceeding 50°C during continuous full-load operation.
Simplified Design for Efficiency: With no need for energy-consuming components like excitation winding, exciter, or AVR voltage regulator, this generator delivers a 20% higher efficiency and power factor compared to traditional models.
Strong Overload Capability: Capable of handling sudden power surges, this generator boasts an impressive overload capacity for demanding applications.
Brushless Technology: The brushless design eliminates the need for carbon brushes, reducing maintenance, avoiding electric sparks, and providing a compact, open structure for easy portability.
Automatic Voltage Regulation (AVR): Equipped with an AVR system, the generator ensures stable voltage output, protecting your devices from power fluctuations.
Versatile Power Supply: This generator is powerful enough to run multiple household appliances, including fridges, furnaces, lights, TVs, and more, making it ideal for emergencies, work sites, and outdoor events.
The 18 kW Portable Gasoline Generator delivers powerful, efficient, and reliable energy wherever and whenever you need it.
