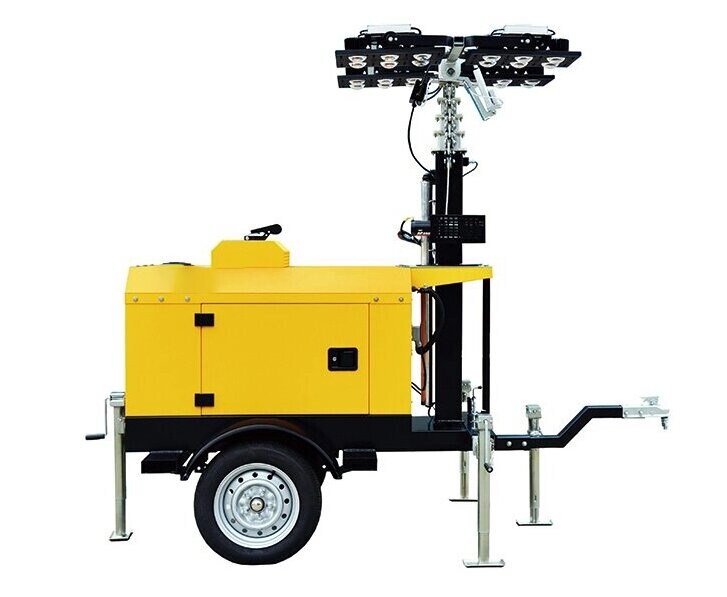

6kW Light Tower Generator, Kubota Engine, 50Hz, 3 Cylinder
Key Specifications / Features
Model No.: GGS-240313-LTG-01
Hits: 12
Introducing our 6kW Light Tower Generator, meticulously crafted for reliable illumination on any job site. Operating at 50Hz with a rated voltage of 230V, this generator features a robust 3-cylinder, 4-cycle diesel engine. It's water-cooled for optimal performance and longevity, ensuring seamless operation in demanding conditions. Equipped with a single-phase brushless alternator, it provides stable power for lighting needs. Trust in our generator to illuminate your work site efficiently and effectively.
Request a quote
Tags
Detail Information
Product Name: 6kW Light Tower Generator
Model: GGS-6-K
Engine Brand: Kubota
Rated Power: 6kW
Maximum Power: 7kW
Frequency: 50Hz
Rated Voltage: 230V
Engine Type: 3 Cylinder, 4 Cycle Diesel Engine
Cooling System: Water-cooled
Alternator Type: Single Phase, Brushless
Technical Data
| Light Tower Generator Specification | |
| Light Tower Generator Model | GGS-6-K |
| Mast Height | 8 m |
| Frequency | 50 Hz |
| Rated Voltage | 230 V |
| Rated Power Output | 6 kW |
| Maximum Power Output | 7 kW |
| Fuel Consumption | 1.7 L/H |
| Fuel Tank Capacity | 30 L/H |
| Noise Level (7m away) | 76 dB(A) |
| Weight | 800 kg |
| Dimension in Operation (L x W x H) | 2990x1300x8000 mm |
| Dimension in Transport (L x W x H) Disassembly | 1950x1300x1010 mm |
| Engine Specification | |
| Engine Brand | Kubota |
| Engine Model | D1105-E2BG |
| Speed | 1500 rpm |
| Type | Vertical, 3 Cylinder, 4 Cycle Diesel Engine |
| Cooling System | Water-cooled |
| Oil Capacity | 5.1 |
| Alternator Specification | |
| Alternator Brand | Mecc alte |
| Alternator Model | LT3N-130/4 |
| Type | Single Phase, Brushless |
| Excitation Mode | Capacitor Exciter |
| Alternator Insulation | H |
| Protection Grade | IP23 |
| Mast Specification | |
| Mast Type | Manual |
| Section No. (Extended) | 4 |
| Mast Rotation | 359° |
| Mast Extension Time | 45 seconds |
| Mast Descend Time | 30 seconds |
| Lighting Specification | |
| Type of Lights | Metal halide lamp |
| Number & Power of the Lights | 4*1000W |
| Mast Lighting & Extension | Manual |
| Mast Lighting & Extension | Electric (Option) |
| Light Angle Turning | Manual |
| Luminous Flux | 4*110000=440000 |
| Illumination Area (5 Lux min) m² | 3900 |
| Lamps Rotation | 75° (Manual) |
| Protection Glass | IP33 |
| Color Temperature | 4200K |
| Trailer Specification | |
| Hitch | Ball Type/O Ring Option |
| Tire Rim Size | 165/R14" |
| Speed | <80km/h |
