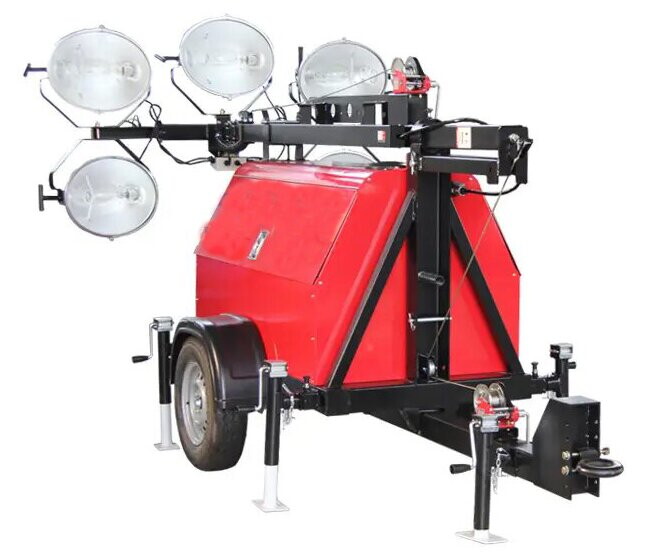

10kW Light Tower Generator, 50Hz, 230V, 4 Cylinder, 4 Stroke
Key Specifications / Features
Model No.: GGS-240314-LTG-01
Hits: 16
Introducing our powerful 10kW Light Tower Generator, designed to illuminate your work site efficiently. Operating at 50Hz, it provides a voltage output of 230V to meet your lighting needs. Powered by a reliable Mitsubishi diesel engine, featuring a 4-stroke 4-cylinder in-line configuration, this generator ensures dependable performance and durability. Trust in our generator to keep your work site brightly lit and productive.
Request a quote
Tags
Detail Information
Product Name: 10kW Light Tower Generator
Model: GGS-10-M
Frequency: 50Hz
Engine Brand: Mitsubishi
Fuel: Diesel
Prime Power: 10kW
Voltage: 230V
Engine Type: 4 Stroke, 4 Cylinder in Line
Cooling System: Water-cooled
Alternator Type: Three Phase, Brushless AVR
Technical Data
| Lighting Tower | Model of Lighting Tower | GGS-10-M | GGS-12-M |
| Prime Power | 10kW | 12kW | |
| Frequency | 50Hz | 60 Hz | |
| Voltage | 230V | 240V | |
| Dimension (Working Status) L × W × H | 3050 × 2750 × 9076 mm | ||
| Dimension (Transportation status) L × W × H | 3700 × 1435 × 2100 mm | ||
| Weight (No fuel) | 850 Kg | ||
| Fuel | Diesel | ||
| Fuel Tank Capacity | 115L | ||
| Maximum Continual Working Time (one full tank fuel) | 60hr | ||
| Engine | Engine Model | Mitsubishi S4L2 | |
| Type | Inline, water-cooled, four-stroke, 4 cylinder | ||
| Bore x Stroke | 78 x 92 mm | ||
| Air Intake Way | Natural Aspiration | ||
| Displacement | 1.758 L | ||
| Rotation Rated Speed | 1500 rpm | 1800 rpm | |
| Fuel Consumption（100% load） | 2.25 L/H | 2.65 L/H | |
| Governor | Mechanical | ||
| Alternator | Alternator Model | Leroy Somer LSA40VS2 | |
| Type | 3 Phase, Brushless, AVR | ||
| Pole | 4 | ||
| Features | Type | Hydraulic type | |
| Pitch Number | 9 | ||
| Up / Down | 13/25 sec | ||
| Rotation Angle | 360° | ||
| Lamp | 4*1000 W | ||
| Type of Lights | Metal Halide Floodlight | ||
| Total Lumen | 360000 | ||
| Radiation Area | 30000 m² | ||
| Auxiliary Output Sockets | 2×16 Amp | ||
| Auxiliary Input Sockets | 1×32 Amp | ||
| Wheel | 2×165R13 | ||
| Fixed Support Leg | 4 | ||
| Forklift Groove | With | ||
