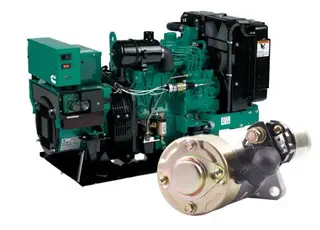

Composition and Principle of Diesel Generator Starter Motor

Diesel generators are widely used in various industrial and commercial settings due to their efficiency and reliability. To achieve a quick and stable start, the performance of the starter motor is crucial. As a core component of the diesel generator, the starter motor converts electrical energy into mechanical energy to smoothly drive the engine. This article explores the composition, working principle, and importance of the starter motor in diesel generators, highlighting its indispensable role in power generation systems.

Structure and Function of the DC Motor

The starter motor employs a series-wound DC motor designed specifically for short bursts of high power. Its key components include:

Armature Winding: Located at the center of the motor, it is responsible for energy conversion.
Commutator: Ensures the current direction is switched correctly as the motor turns, maintaining continuous operation.
Magnetic Poles: Made of permanent magnets or electromagnets, they provide a stable magnetic field for the motor's function.
Field Winding: Connected in series with the armature to enhance the magnetic field, increasing starting torque.
Brushes: Connect the power source to the motor, ensuring smooth current flow.

During startup, the battery powers the motor, and the combined magnetic fields from the field winding and armature generate high torque. This torque rotates the gear, driving the flywheel of the diesel generator. This design allows the motor to quickly overcome initial inertia, ensuring a smooth start for the generator.

Role of the Electromagnetic Switch

The electromagnetic switch is a critical control device in the starter motor, responsible for connecting and disconnecting the main circuit. The working process involves the following aspects.

1. Connection Process

When the switch receives DC power, the pull-in and hold coils create a strong magnetic field, pushing the drive gear to engage with the flywheel of the diesel generator. At this point, the movable contact of the switch connects with the stationary contact, completing the main circuit.

2. Disconnection Process

Once the power is cut off, the drive gear returns to its original position under spring action, stopping the starter motor.

Over time, especially in cold weather, the contacts of the electromagnetic switch can wear out, making it difficult for the starter gear to engage with the flywheel. Regular maintenance and inspection of the switch are essential to ensure its proper functioning.

Working Process of the Starter Motor

Starting the diesel generator requires external force to rotate the crankshaft, completing processes like intake, compression, combustion, and exhaust. The starter motor accomplishes this through the following steps.

External Force Engagement: The motor quickly rotates the crankshaft using the series-wound DC motor.
Rotation Process: As the crankshaft begins to turn, internal friction gradually decreases, reducing the torque needed for startup.
Current and Torque Relationship: Initially, a high current and torque are required to overcome static inertia. As speed increases, the back EMF rises, current decreases, and the motor's torque falls, adapting to the diesel engine's starting requirements.
This process ensures that the starter motor provides the necessary torque in the shortest time possible, facilitating a smooth start for the diesel generator under varying loads.

Working Characteristics of the Series-Wound Motor

The design of the series-wound motor allows it to effectively handle various resistances during startup. Its working principle includes:
Initial Startup: When powered, the motor generates high current and torque, quickly overcoming static friction.
Armature Rotation: The armature winding cuts through magnetic lines, inducing back EMF that opposes current flow.
Increasing Speed: As the speed increases, back EMF rises, current decreases, and the motor's torque falls. This characteristic allows the motor to smoothly transition into operational mode after startup.
During the startup phase, the motor needs to provide extra torque to overcome static friction and inertia, making the starting process efficient and reliable.

Protection Mechanisms of the Starter Motor

To extend the starter motor's lifespan and enhance reliability, modern diesel generators often include various protective mechanisms.

Overload Protection: Fuses or current sensors monitor electrical flow, preventing damage from overload.
Temperature Monitoring: Built-in temperature sensors monitor the motor's temperature to prevent overheating.
Automatic Power Cut-off: After multiple failed start attempts, the system automatically disconnects power, avoiding battery drain and motor damage.
These protective features ensure safe operation under extreme conditions, enhancing the overall system's reliability.

Applications and Advantages

The DC motor starter system is widely used in various automotive engines and small to medium-sized diesel generators due to its efficiency, reliability, and ease of use. Its main advantages include:
Compact Structure: Simple design reduces space requirements, making installation and maintenance easier.
User-Friendly Operation: Designed for easy starting, it can be used in various environments.
Remote Control: Enables remote starting and monitoring, increasing convenience and flexibility.
Durability: The design and materials of the motor ensure stable operation even under high load and harsh conditions.

Conclusion

In summary, the starter motor of a diesel generator ensures an efficient and reliable startup process through the coordinated operation of the DC motor and electromagnetic switch. This system not only boasts excellent performance characteristics but also adapts to various working environments, providing robust support for modern diesel generators. With regular maintenance and proper use, the starter motor can maintain efficient operation over time, meeting diverse power generation needs and continuing to play a vital role in future technological advancements.
