Role and Benefits of Diesel Generator Paralleling Switchgear
On this page

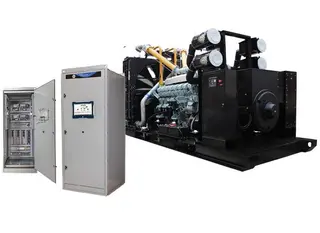

Paralleling switchgear are essential electrical equipment for diesel generator sets, playing a crucial role in modern industrial production, construction sites, medical institutions, and many other fields. Diesel generator sets not only provide daily power needs but also ensure the continuity of power supply as backup power sources during sudden power outages or unstable grid conditions. By connecting multiple diesel generator sets in parallel to an integrated system, the paralleling switchgear can meet the demands of high power and long-term operation, offering a flexible and reliable power solution for various scenarios.
Functions and Advantages of Diesel Generator Set Paralleling Switchgear
In some application scenarios, a single diesel generator set may not meet the needs of large-scale equipment or long-term high-load operation. To address this limitation, diesel generator set paralleling switchgear has emerged. By paralleling multiple diesel generator sets into a more powerful integrated power system, it can effectively cope with high-load and long-term continuous power supply requirements.
1. Main Functions
The paralleling switchgear manages the paralleled generator sets through an intelligent control system, adjusting the output load of each unit to ensure the balance and stability of the entire power system. When the power supply load increases, the system can automatically start more generator sets; when the load decreases, the system can automatically reduce the number of operating units, thereby optimizing fuel consumption and improving system efficiency.
Additionally, the paralleling switchgear also has the function of paralleling with the power grid, achieving dual power supply and further enhancing the continuity of power supply. When the external power grid supply is restored, the system can intelligently switch to ensure uninterrupted power supply.
2. Advantages of Paralleling Switchgear
Enhances the reliability and stability of the power supply system: Multiple generator sets operating in parallel provide more stable voltage and frequency, capable of withstanding larger load fluctuations and impacts.
Easier maintenance and upkeep: By paralleling multiple units, loads can be centrally dispatched, facilitating planned maintenance and upkeep for each generator set, reducing downtime for individual units.
Improved energy efficiency and economy: Based on actual load requirements, the appropriate number of low-power generator sets can be flexibly activated, avoiding fuel waste caused by high-power units operating at low loads, thereby reducing operational costs.
Scalability and flexibility: The design of the paralleling switchgear allows for the gradual addition of generator sets according to actual needs, without the need for a one-time investment in large-scale equipment, making it convenient for future expansion and adapting to the growth of company business.
Working Principle of Paralleling Switchgear
The operation process of diesel generator set paralleling switchgear is based on synchronization and intelligent control. After the generator set starts successfully, the electrical energy is transmitted to the load through the paralleling switchgear. During the paralleling process, the system detects the frequency and phase of the generator set to be paralleled through a synchronizer and adjusts it to be consistent with the busbar. When the synchronization conditions are met, the system issues a paralleling signal, and the switch is closed to complete the paralleling operation.
1. Load Management and Distribution
After multiple generator sets are paralleled, the system allocates the load proportionally according to the power capacity of each unit, ensuring efficient and balanced operation of the power system. When the load changes, the system can automatically increase or decrease the number of operating generator sets based on the current load rate. For example, when the load rate is below 35%, the system will de-parallel some generator sets; when the load rate exceeds 80%, the system automatically starts additional generator sets to ensure that the generator sets always operate within the most economical load range.
2. Fault Handling and Protective Functions
Diesel generator set paralleling switchgear also has a comprehensive fault handling and protection mechanism to ensure that the system remains safe and stable during operation.
Automatic fault disconnection: If a diesel engine or control system of a generator set fails, the system automatically disconnects the output of that unit and issues an alarm to prevent overload impact on the entire system.
Overcurrent protection: When an overcurrent phenomenon occurs in the load, the system automatically trips, stopping power supply to the load, and the generator set enters a cooling shutdown state. After the fault is handled, the system can automatically resume power supply.
Synchronization and reverse power protection: The system uses soft loading and unloading methods to avoid the impact of instantaneous load transfer on the power system, ensuring smooth operation of the generator set during load transfer. Reverse power protection prevents generator sets from dragging down other units due to faults.
Interlocking trip protection: When a running generator set shuts down due to high water temperature or other reasons, the paralleling switch of the system will trip interlock, preventing reverse power from affecting other units and preventing generator sets from damaging the excitation system due to sudden high current.
Conclusion
With its high reliability, flexibility, and load management capabilities, the diesel generator set paralleling switchgear has become an indispensable part of modern power systems. Whether in daily applications or emergency situations, the paralleling switchgear can provide strong and stable power support, ensuring reliable power supply in various scenarios. Its intelligent control, energy-saving design, and scalability make it an ideal choice to meet modern power demands.
